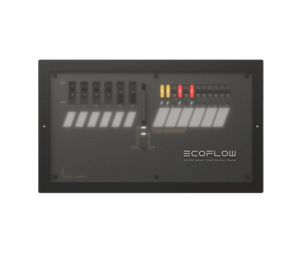

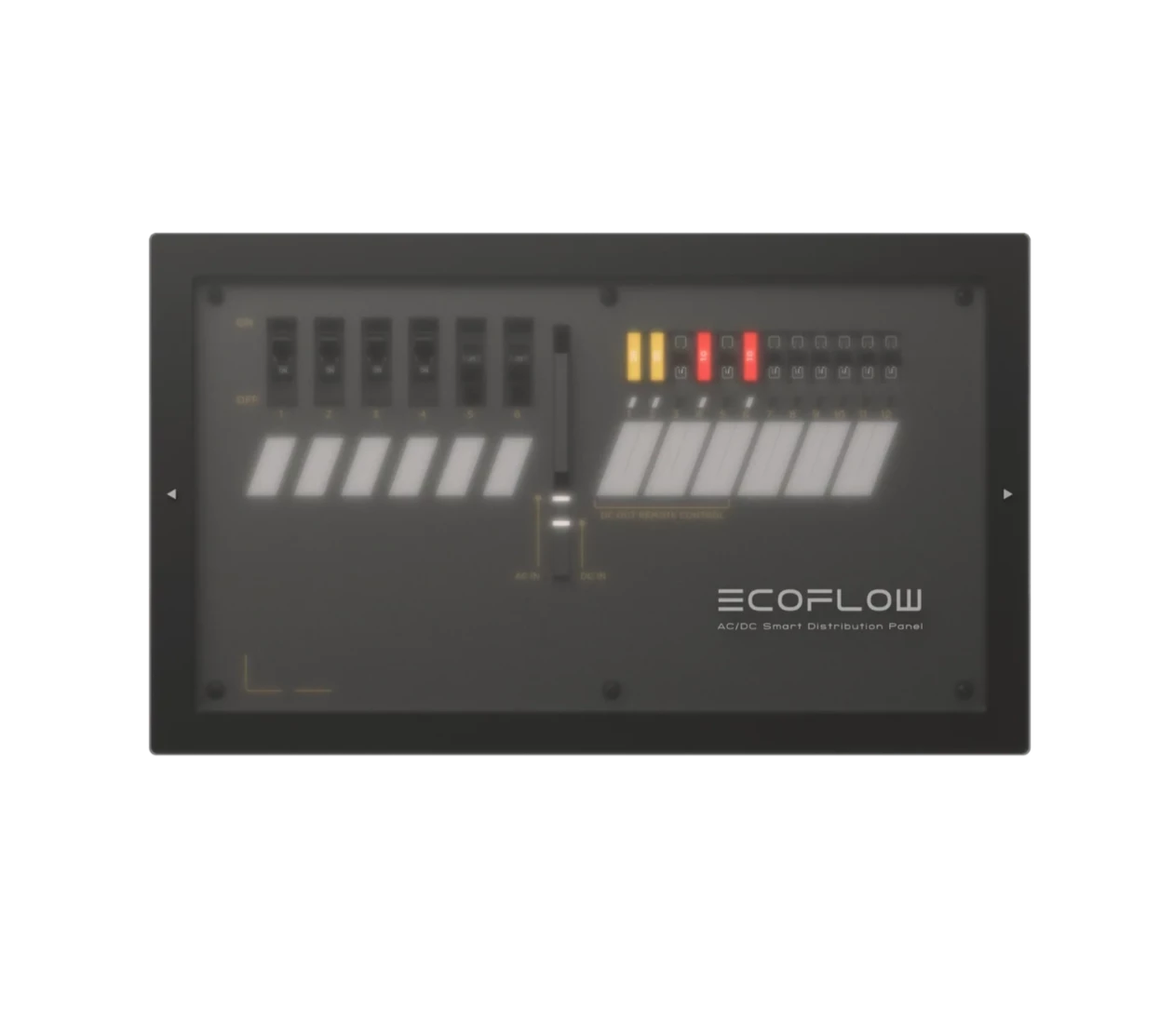

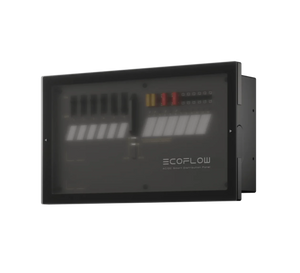

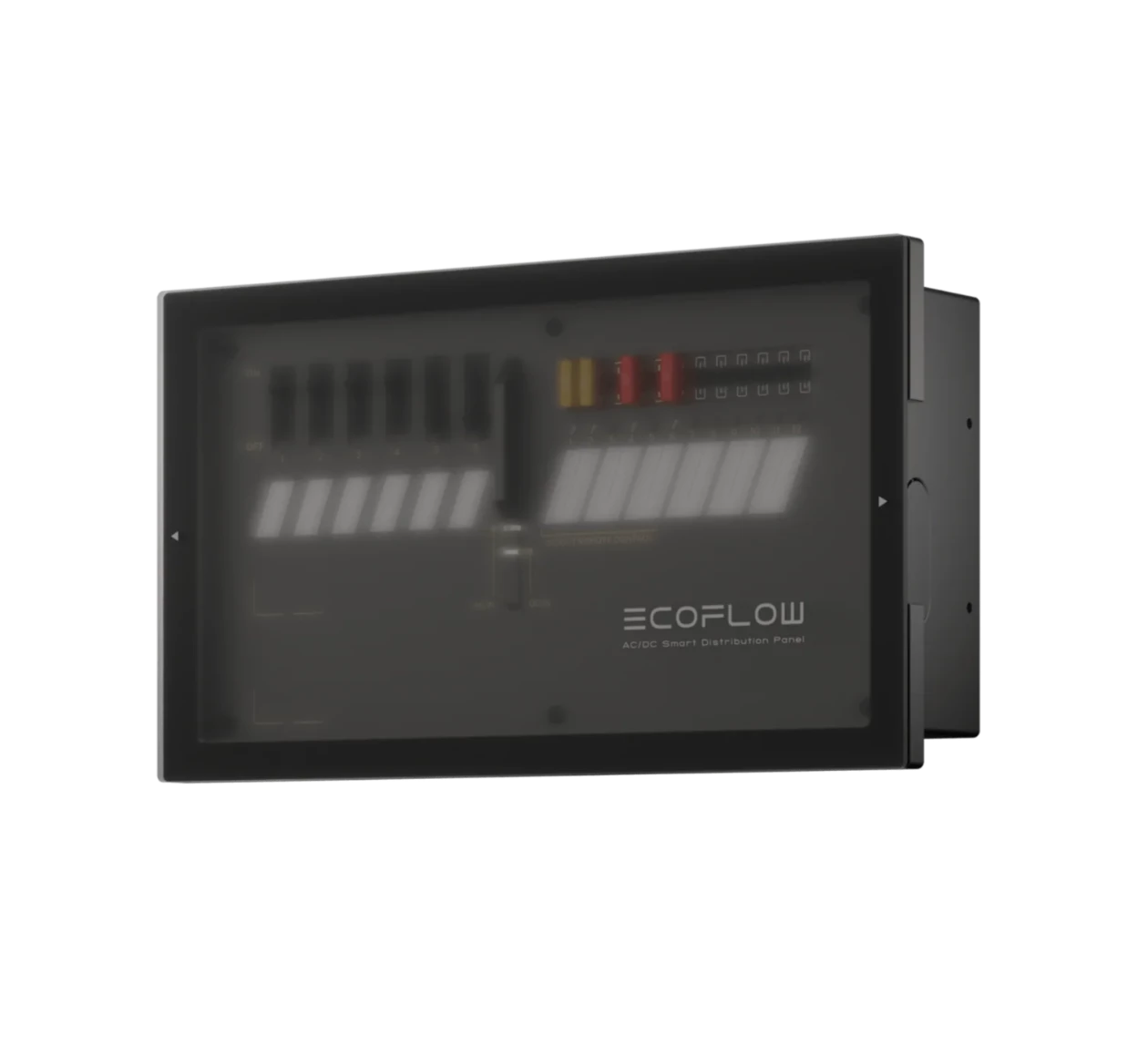

EcoFlow 30A AC/DC Distribution Panel
Introducing the EcoFlow 30A AC/DC Distribution Panel, a game-changing solution that brings convenience and versatility to your power distribution needs. This innovative panel is designed to streamline the management of AC and DC power, making it the perfect companion for both indoor and outdoor applications.
The EcoFlow 30A AC/DC Distribution Panel serves as a central hub for power distribution, providing a seamless and organized system for connecting and powering multiple devices and appliances. With its robust construction and intelligent design, this panel ensures efficient and reliable power distribution in various settings.
One of the standout features of the AC/DC Distribution Panel is its ability to accommodate both AC (alternating current) and DC (direct current) power sources.
Safe and reliable power control
With a simply-wired plug and clear LED indicators, the EcoFlow 30A AC/DC Distribution Panel offers an easy setup and makes adjusting power distribution more manageable than ever.
Experience the convenience and versatility of the EcoFlow 30A AC/DC Distribution Panel. Empower your power distribution management, simplify your charging process, and enjoy a clutter-free and organized power setup. Upgrade your power distribution system today and unlock the full potential of your devices and appliances with the EcoFlow 30A AC/DC Distribution Panel
FREE SHIPPING on this item anywhere in the lower 48 US states.
Key Features:
EcoFlow 30A AC/DC Distribution Panel
- Safe power distribution

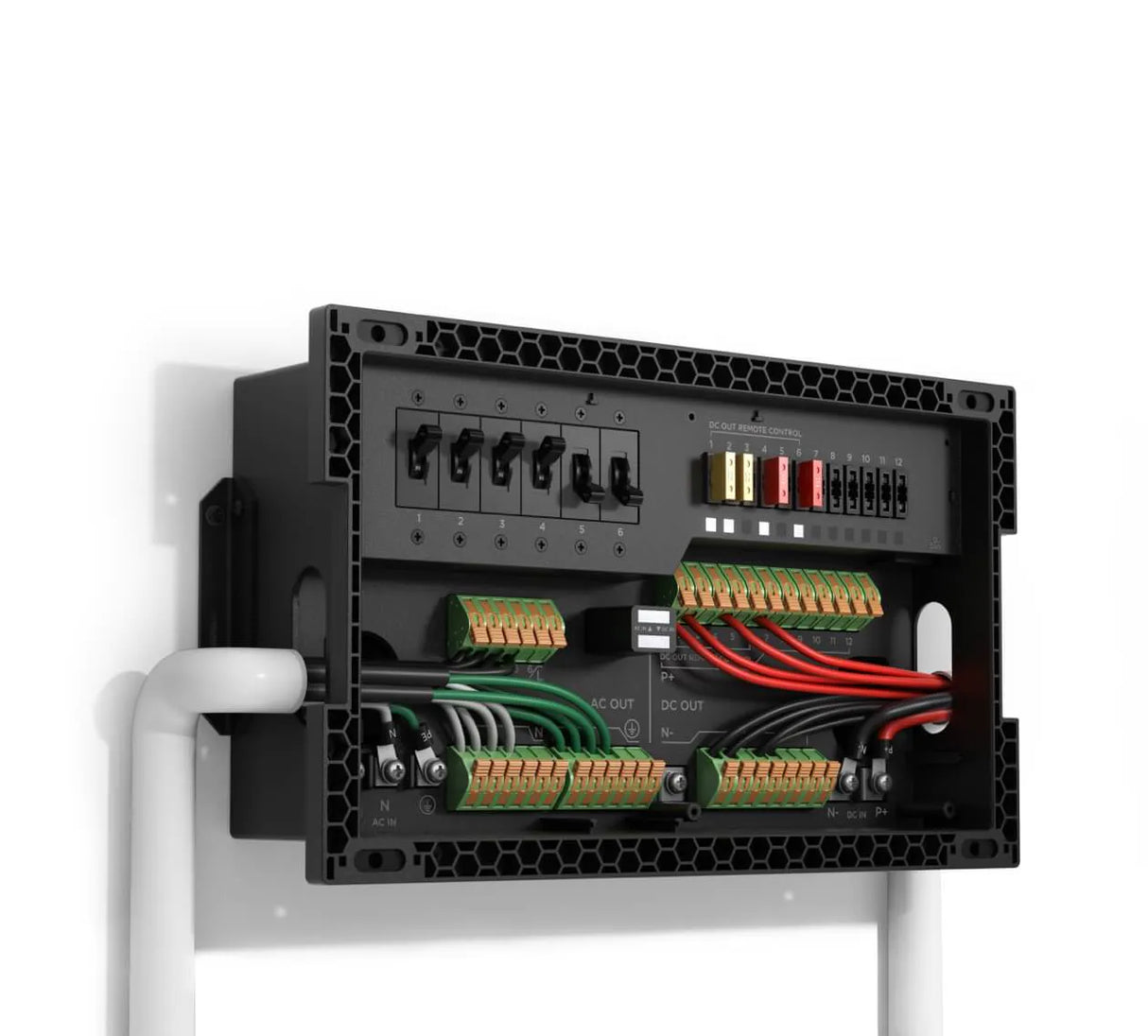

- Easy installation
- Customize your own power
- Track your energy
- Made in USA
- Warranty-5 Years
Compatible with EcoFlow Power Hub, EcoFlow Power Kits, and EcoFlow Power Kit Console.

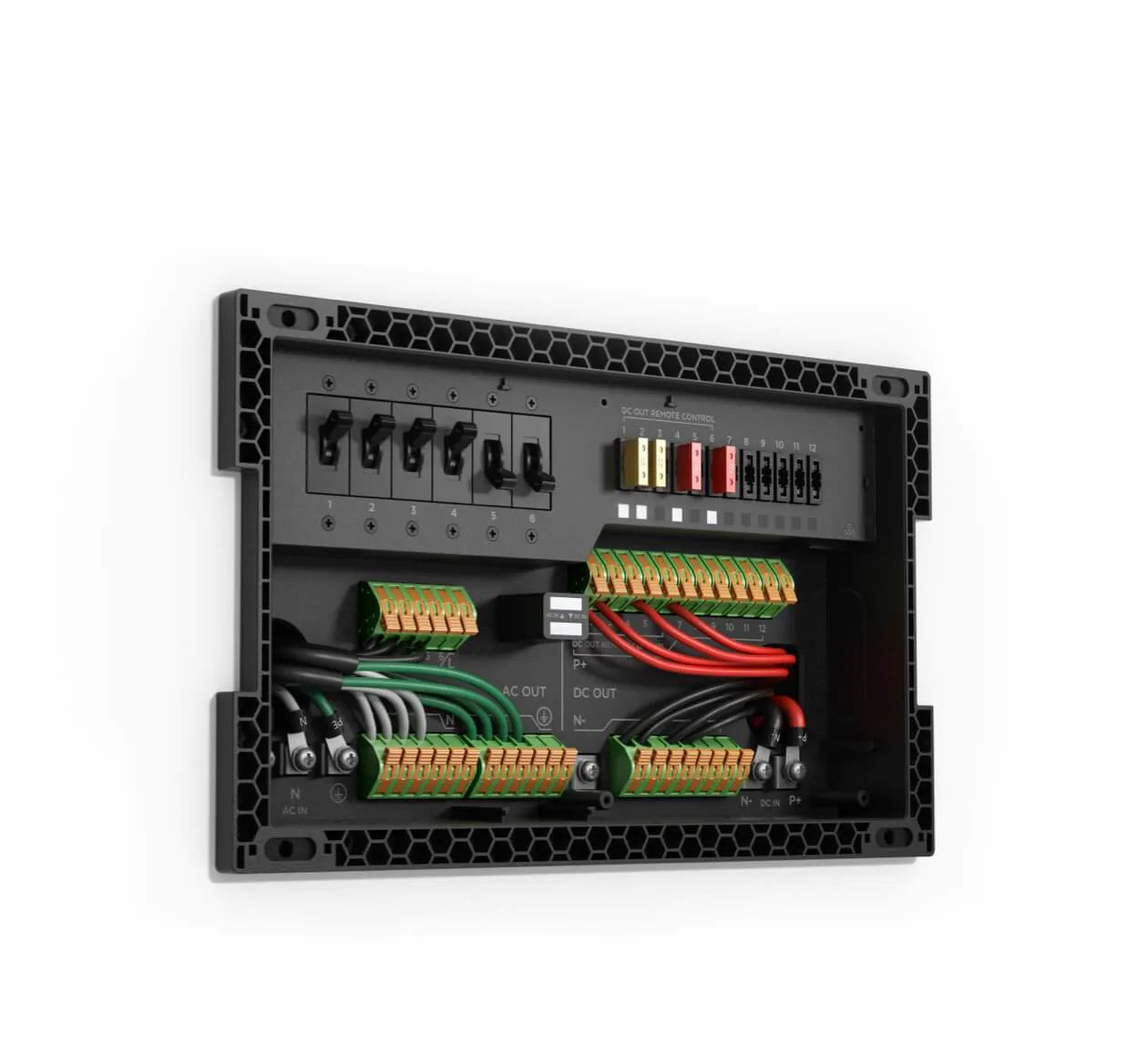

There are 12 DC positive wire connection points but only 8 negative connection points on the Gen1 EcoFlow Smart Distribution Panel. The image below shows List item #14 is the proper negative post for circuits with >20A connections for the remaining 4 negative wires connections, if using all 12 DC positions. Please contact a certified builder or electrician for proper connections if you are unsure.
Specifications: EcoFlow 30A AC/DC Distribution Panel
| Brand | EcoFlow |
| Type | AC/DC Distribution Panel |
| DC Main Output | 10-30V, Max. 70A |
| AC Main Output | 100V~120V, Max. 30A |
| DC Output | 6 x Controllable Circuits + 6 Regular Circuits, 10-30V, Max. 20A Each Circuit |
| AC Output | 6 x Circuits (1/2: 30A, 3/4/5/6: 20A), 100V~120V |
| Dimension (HxWxD) | 8.3 in x 14 in x 3.9 in |
| Operating Temperature | -13°F to 140°F |
| Net Weight | 5.7 lbs |
| Certificate & Standard | CE, UL, FCC, UKCA, E-Mark, RCM, TELEC, KCC, ICES, ip21, EMC Class B |
| Warranty | 5 Years |
Document: EcoFlow 30A AC/DC Distribution Panel
EcoFlow AC/DC Distribution Panel User Manual
Videos: EcoFlow 30A AC/DC Distribution Panel
FAQ
FAQ
How does the Power Hub communicate the voltage to the Smart Distribution panel?
There are two included RJ45 network cables included in a Independence Power Kit. One that connects the Power Hub directly to the Smart AC/DC Distribution Panel; a second one to connect the Power Hub to the Power Kit Console.
What is the operating temperature range of the Power Kit Console?
The information as stated in the user manual is below: -20C to 50C (-4F to 122F). This is the operating temperature range for all
Power Kit components.
What is considered a standard alternator input scenario and what is else is allowed involving alternator charging with EcoFlow Power Kits?
All 3x PV/ALT input ports can be used as alternator charging ports. The first ATL-IN input port can allow 70A max and 1600W input max, meaning that if you draw from 12V alternator you can only get 13.6V x 70A = 952W which is almost 1000 (it will fluctuate between 950W and 1000W). If a 48V alternator is connected to port 1, then an estimated 54V x 29.6A = 1600W is expected. The 2nd and 3rd ALT-IN input ports are both 30A max and 1600W max. If you connect a 12V alternator to these ports, an estimated 13.6V x 30A = 408W each is expected. If you connect a 48V alternator to ALT-IN 2 or 3 ports, an estimated 54V x 29.6A = 1600W each is expected. If you connect a 12V alternator on all 3 ALT-IN input ports, an estimated 952W + 408W + 408W = 1768W (if your 12V alternator can deliver 70A + 30A + 30A = 130A) is expected. If you use 48V alterantor on all 3 ports, an estimated 1600W + 1600W + 1600W = 4800W input is expected.
What type of shore power inlet is recommended for an EcoFlow Power Kit?
The Power Kit allows up to 30A input, so we recommend 30amps max. 30A to 15A converters are available if your enegy consumption needs are not high. Furrion is a tested and trusted brand that has worked perfectly with an EcoFlow Power Kit.
