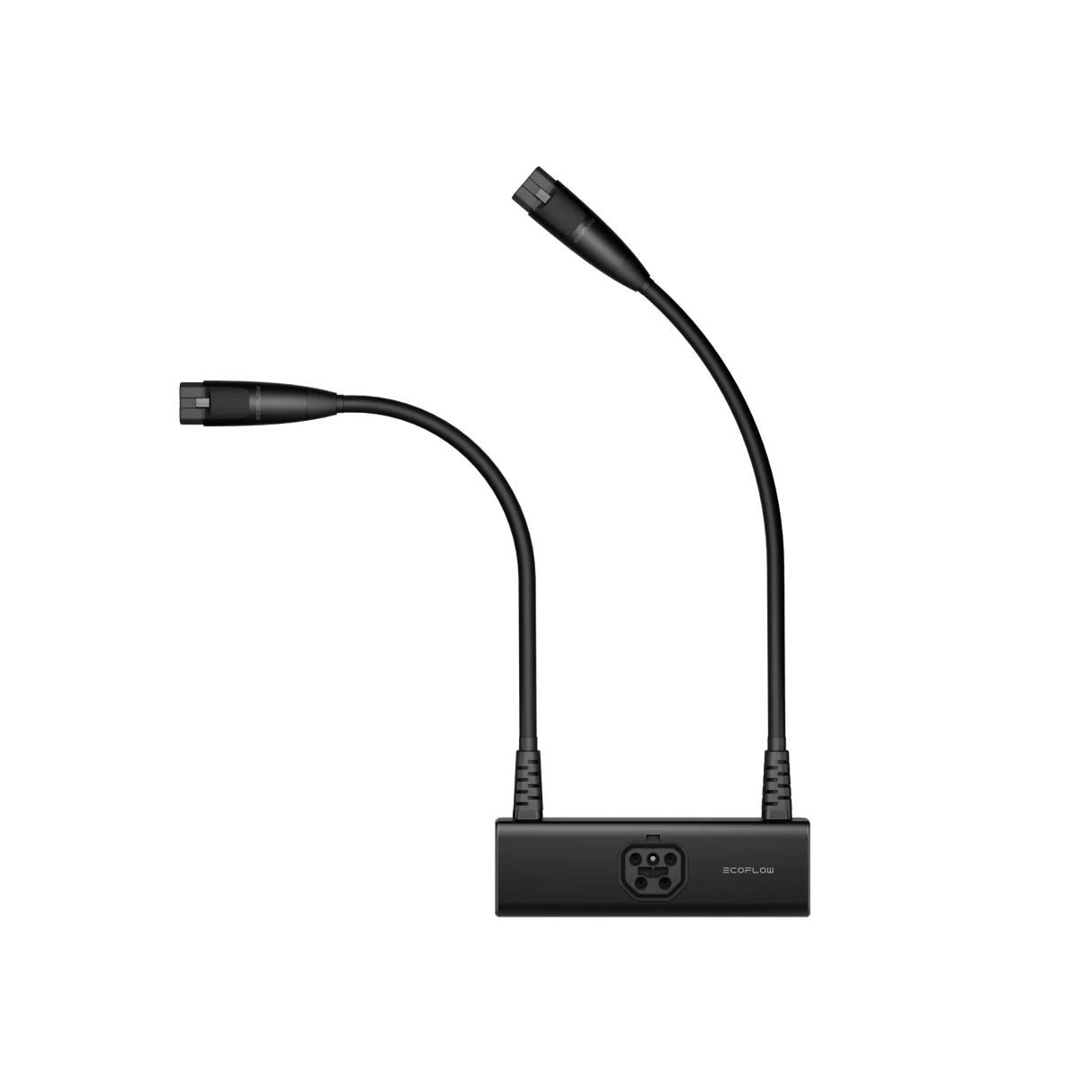

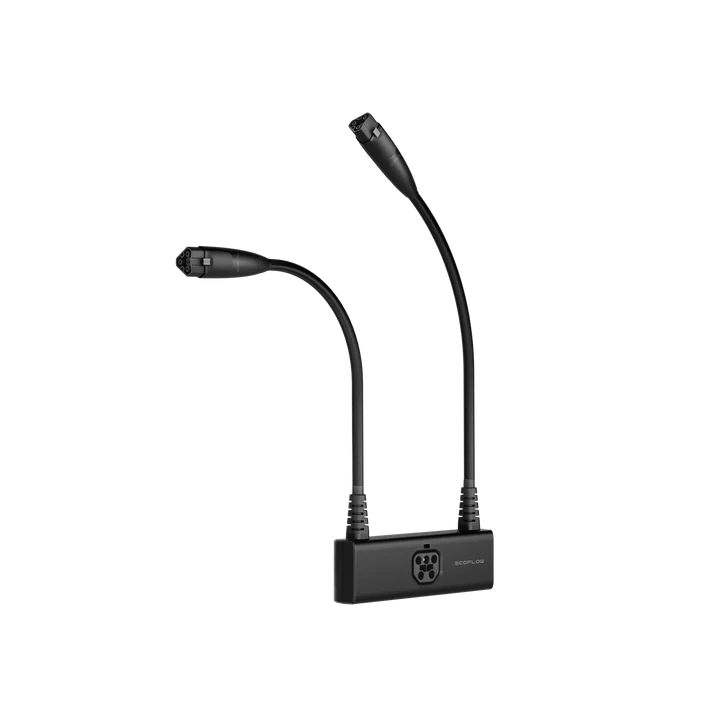

EcoFlow Double Voltage Hub (Smart Home Panel 2)
Plans for using tons of energy off-grid? Link two DELTA Pro portable power stations and their battery management systems will distribute capacity evenly to anything plugged into this EcoFlow Double Voltage Hub (Smart Home Panel 2).
House battery backup never had this much output. Chain two power stations together and your DELTA Pro’s will output a whopping 7200W, enough for even the most heavy-duty of appliances.
Note: This Double Voltage Hub is designed to be compatible with the EcoFlow Smart Home Panel 2, so it has a different connection port than the original EcoFlow Double Voltage Hub designed for the Smart Home Panel 1.
The double voltage hub is easy to carry, and pairs with your DELTA Pro to bring even more versatility to your portable battery set up. Charge up, link your power stations and you’re good to go.
The hub has two NEMA 6-20 outlets that power 20-amp equipment and tools. It also has a NEMA L14-30 outlet, making it that much easier to switch out your old gas generator.
Note: The Double Voltage Hub requires two EcoFlow DELTA Pro power stations.
FREE SHIPPING on this item anywhere in the lower 48 US states.
Key Features: EcoFlow Double Voltage Hub (Smart Home Panel 2)
- Double your capacity
- Even more output
- Portable & lightweight
- Three more outlets
- Made in China
- 5-year warranty.
Specifications: EcoFlow Double Voltage Hub (Smart Home Panel 2)
| Brand | EcoFlow |
| Input Voltage | 100–120V∿ 50Hz/60Hz |
| Output Voltage | 200–240V∿ 50Hz/60Hz |
| Max AC Input/Output | US version: 7200W, 30A |
What's In The Box
- Double Voltage Hub
- User manual
Document: EcoFlow Double Voltage Hub (Smart Home Panel 2)
EcoFlow Double Voltage Hub (SHP2) User Manual
Video: EcoFlow Double Voltage Hub (Smart Home Panel 2)
FAQ
FAQ
How does the Power Hub communicate the voltage to the Smart Distribution panel?
There are two included RJ45 network cables included in a Independence Power Kit. One that connects the Power Hub directly to the Smart AC/DC Distribution Panel; a second one to connect the Power Hub to the Power Kit Console.
What is the operating temperature range of the Power Kit Console?
The information as stated in the user manual is below: -20C to 50C (-4F to 122F). This is the operating temperature range for all
Power Kit components.
What is considered a standard alternator input scenario and what is else is allowed involving alternator charging with EcoFlow Power Kits?
All 3x PV/ALT input ports can be used as alternator charging ports. The first ATL-IN input port can allow 70A max and 1600W input max, meaning that if you draw from 12V alternator you can only get 13.6V x 70A = 952W which is almost 1000 (it will fluctuate between 950W and 1000W). If a 48V alternator is connected to port 1, then an estimated 54V x 29.6A = 1600W is expected. The 2nd and 3rd ALT-IN input ports are both 30A max and 1600W max. If you connect a 12V alternator to these ports, an estimated 13.6V x 30A = 408W each is expected. If you connect a 48V alternator to ALT-IN 2 or 3 ports, an estimated 54V x 29.6A = 1600W each is expected. If you connect a 12V alternator on all 3 ALT-IN input ports, an estimated 952W + 408W + 408W = 1768W (if your 12V alternator can deliver 70A + 30A + 30A = 130A) is expected. If you use 48V alterantor on all 3 ports, an estimated 1600W + 1600W + 1600W = 4800W input is expected.
What type of shore power inlet is recommended for an EcoFlow Power Kit?
The Power Kit allows up to 30A input, so we recommend 30amps max. 30A to 15A converters are available if your enegy consumption needs are not high. Furrion is a tested and trusted brand that has worked perfectly with an EcoFlow Power Kit.
