EcoFlow Power Kit (10 kWh)

FREE SHIPPING

$ 10,639.00
Save $ 2,560

Supports up to 6000W of charging from a combination of 4 charging methods: up to 4800W solar, 4800W alternator, 3000W shore power, and 1800W Smart Generator input.
Plug-and-play for simple assembly
Compact, integrated design, 5-in-one Power Hub incorporates all components.
Supports any 120VAC RV air conditioner, some 12VDC A/Cs, many 24VDC A/Cs, and any 48VDC RV air conditioner (with use of the 48V A/C cable)
Save space with stackable 5 kWh batteries
48V system, a safer, smaller power solution
Real-time and remote smart controls

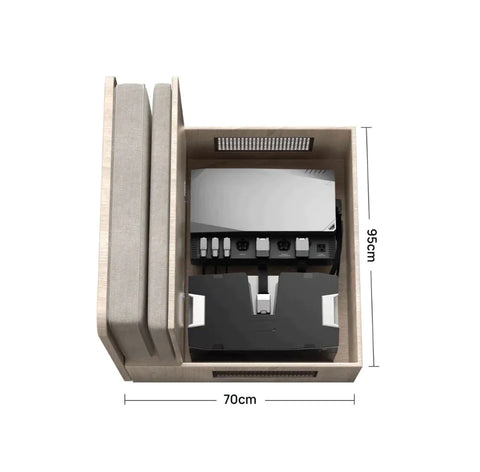

Save time: Add-on an OurKaravan 80/20 aluminum Sprinter wheel well cabinet kit, ready-made mounting for the power system in your van
Made in China
5-year system warranty, can purchase upgrade to 10 years.

Quantity

PRODUCT SPECS FAQ MANUALS

Hassle-free, high-powered EcoFlow 10 kWh Power Kit is the world's first integrated, plug-and-play 48V off-grid power solution designed for camper vans, motor homes, trailers and RVs of any kind.

Add more capability to your Power Kit with our 48-volt RV air conditioner cable and even an OurKaravan 80/20 Sprinter/Transit Cabinet Kit custom-designed to secure your Power Kit!

FREE SHIPPING on this item anywhere in the lower 48 US states.

CHOOSE YOUR KIT

You can choose between three variants of the EcoFlow Power Kit (10 kWh):

Get Set Kit includes - 1x Power Hub, 2 x 5kWh LFP Batteries, 1x Cable Pack
Prepared Kit includes - 1x Power Hub, 2 x 5kWh LFP Batteries, 1x Cable Pack, 1x AC / DC Smart Distribution Panel, 2x Battery Mounting Strap

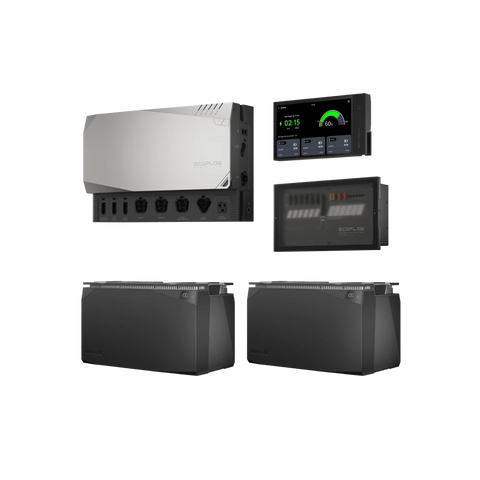

Independence Kit includes - 1x Power Hub, 2x 5 kWh LFP Batteries, 1x Cable Pack, 1x AC / DC Smart Distribution Panel, 1x Power Kit Console, 2x Battery Mounting Straps with Brackets
Independence Kit + 48V A/C Cable includes - 1x Power Hub, 2x 5 kWh LFP Batteries, 1x Cable Pack and 48V RV air conditioner cable, 1x AC / DC Smart Distribution Panel, 1x Power Kit Console, 2x Battery Mounting Straps with Brackets
Independence Kit + 48V A/C Cable + OurKaravan Cabinet Kit includes - 1x Power Hub, 2x 5 kWh LFP Batteries, 1x Cable Pack and 48V RV air conditioner cable, 1x AC / DC Smart Distribution Panel, 1x Power Kit Console, 2x Battery Mounting Straps with Brackets, and an OurKaravan Cabinet Kit. The OurKaravan Cabinet Kit mounts over the rear wheel well on any 2007+ Mercedes Sprinter or 2015+ Ford Transit 148" EXT model(see FAQ's), providing a sturdy aluminum cabinet frame with brackets for the Power Kit components. The cabinet can be easily faced with wood panels of your choice (panels not included) has designed a compact, scalable power system with 4 components.

Note: The 48V Cable comes with the EcoFlow Battery Port Connection pre-assembled on one end and has postive/negative bare wire on the opposite end. No ring terminals or crimps are included.

SPECS

Power Kits

Tests and Certifications	UL, FCC, ICES
AC Main Output/Frequency	Pure Sine Wave, 3600W (Surge 7200W), 120V, 50Hz/60Hz
DC Main Output	13.6V/70A 1000W Max: 26.4V/60A. 1600W Max
AC Main Input	X-Stream Fast Charging 3000W Max, 30A Max
AC Main Input Voltage/Frequency	100-120V, 50Hz/60Hz
Operating Temperature	-13°F-140°F
Discharge Temperature	-13°F-140°F
Charge Temperature	-13°F-140°F
Storage Temperature	-13°F-140°F

5 kWh LFP Battery

Capacity	5120Wh (51.2V, 100Ah)
Cell Chemistry	Lithium Iron Phosphate
Cycle Life	~3500 Cycles up to 80% Capacity
Protection Level	IP54
Test and Certifications	UL Standard, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE
Storage Temperature (F)	-4°F–140°F
Storage Temperature (C)	-20°C–60°C
Operating Temperature (F)	-4°F-122°F
Operating Temperature (C)	-20℃-60℃

Power Hub

Dimensions (in)	11.8 x 18.9 x 5.5 (Height x Width x Depth)
Testing & Certifications	CE, UL, FCC
Wi-Fi	Supported
Bluetooth	Supported
OUTPUT
AC Main Output / Frequency	Pure Sine Wave, 3600W (surge 6000W), 230V~, 50Hz/60Hz
DC Main Output	13.6V/70A 1000W Max; 26.4V/60A, 1500W Max
INPUT
AC Main Input	X-Stream Fast Charging 3000W Max, 16A Max
AC Main Input Voltage/frequency	220-240V, 50Hz/60Hz
Solar Charging Input	15-150V 30A, 1600W max each port, up to 4800W total
Alternator Charging Input	13V-60V, 60A/30A/30A, up to 4800W total
TEMPERATURE
Best Operating Temperature	20°C - 30°C
Discharge Temperature	-25°C - 60°C
Charge Temperature	-25°C - 60°C
Storage Temperature	-25°C - 60°C
Net Weight	31 lbs

AC/DC Smart Distribution Panel

AC Main Input	30A Max. 120V, 3600W
AC Output	6 AC Positions, 20A Max Each
DC Main Input	70A Max
DC Output	12 Fused DC Positions (6 Positions Controllable via Power Kit Console & App)
Operating Temperature (C)	-25℃-60℃
Operating Temperature (F)	-13°F-140°F
Dimensions	8.3x13.9x3.9in (Height x Width x Depth)
Net Weight (lbs)	5.7lbs
Protection Level	IP21
Tests and Certifications	UL Standard, FCC,PSE

Power Kit Console

Touch Screen (Diagonal Measurement)	7 Inch (6x3.4in) (Width x Height)
Power Supply Voltage	12 VDC
Operating Temperature (C)	-20℃-60℃
Operating Temperature (F)	-4°F-140°F
Tests and Certifications	UL Standard, FCC,ICES,CE,UKCA,E-Mark,RCM,TELEC,KCC

FAQ

1. How can I adapt the OurKaravan EcoFlow Cabinet to a Ford Transit 148" standard wheelbase?

With a minor configuration change to the pieces involved with mounting the Power Hub, you can adapt this to a 2015+ Ford Transit 148" wheelbase. Fits 2015+ 148" EXT and any 2007+ Mercedes Sprinter models with no changes required.

2. Can I combine 2 kWh and 5 kWh batteries?

No, you cannot combine 2 and 5 kWh batteries with EcoFlow Power Kits. You must expand by combining 2 kWh batteries or 5 kWh batteries.

3. What is the max output power allowed on an EcoFlow Power Kit?

The Power Hub AC and DC output specifications as stated in the user manual:

13.6VDC - 70 A, maximum power: 1000W;
26.4VDC - 60 A, maximum power: 1600W;
AC Standard Out: 120V - 20A;
AC Main Out: 3600W (surge 7200W, 100ms), 120V, 60 Hz

4. How much solar do I need to charge an EcoFlow 2 kWh Power Kit?

The maximum solar input is 4800W on an EcoFlow Power Kit. Depending on average consumption, mounting space, mounting location, the panel's rated power and deciding whether you connect in series or parallel, are all factors in making this decision. We cannot recommend any amount since all installations are different, so please decide accordingly based on your needs. We recommend connecting solar panels in series to increase the voltage, rather than parallel which increases the amperage. We offer multiple EcoFlow solar cables and accessories to help you plan your layout.

Manuals

EcoFlow LFP Battery User Manual

EcoFlow Power Hub User Manual

EcoFlow Power Kit Console User Manual

EcoFlow AC DC Smart Distribution Panel User Manual

OurKaravan Cabinet PDF
