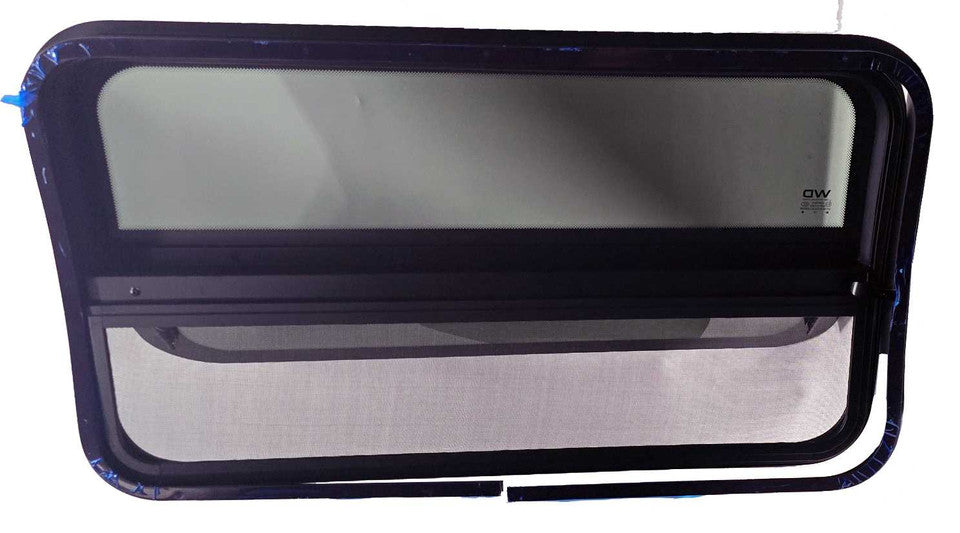

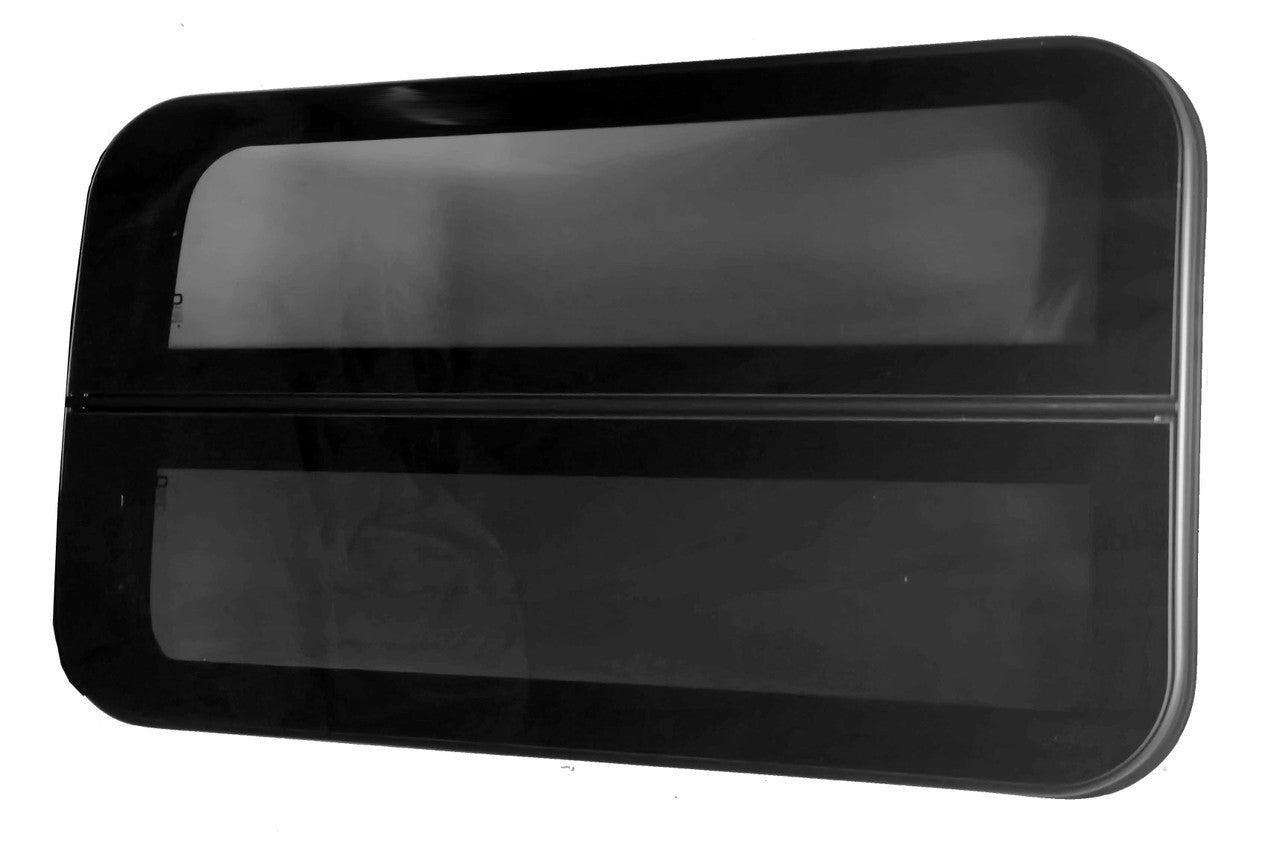

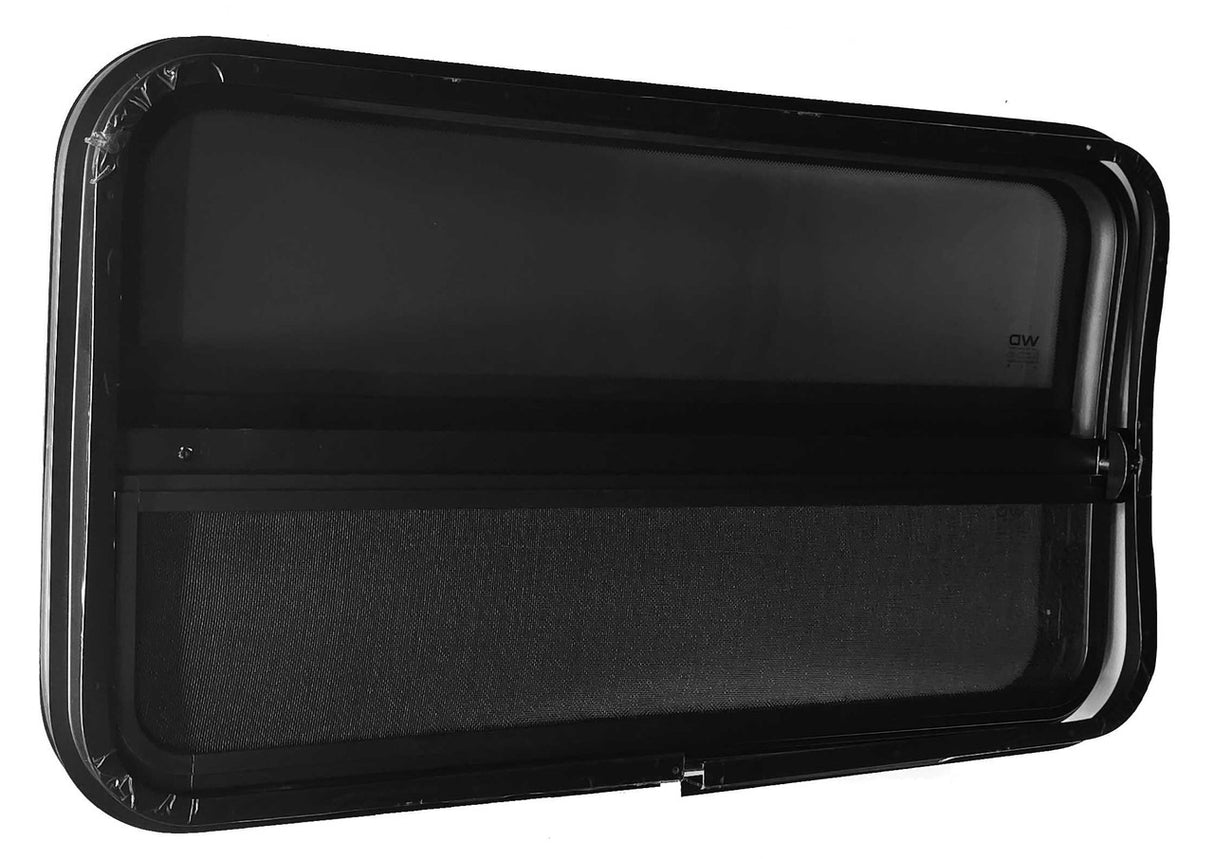

Van Windows Direct Universal Split-Awning Window (O.D - 33.94" x 19.41")(AW3218S)
GET $399 FLAT RATE SHIPPING ON VWD BRAND WINDOWS WHEN YOU BUY OVER $1500.
VWD $399 flat rate shipping applies to VWD brand windows and install accessories including VWD Trim Lock, SikaFlex Urethane Adhesive, and DOW Single Application Primer only. See shipping breakdown at checkout for details.

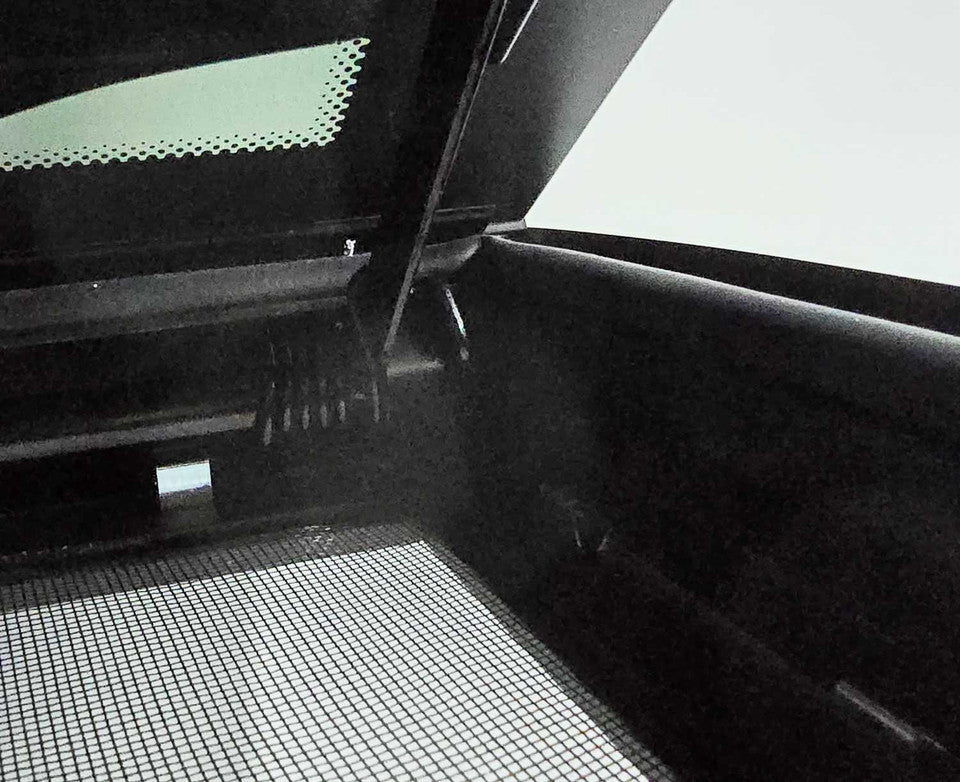

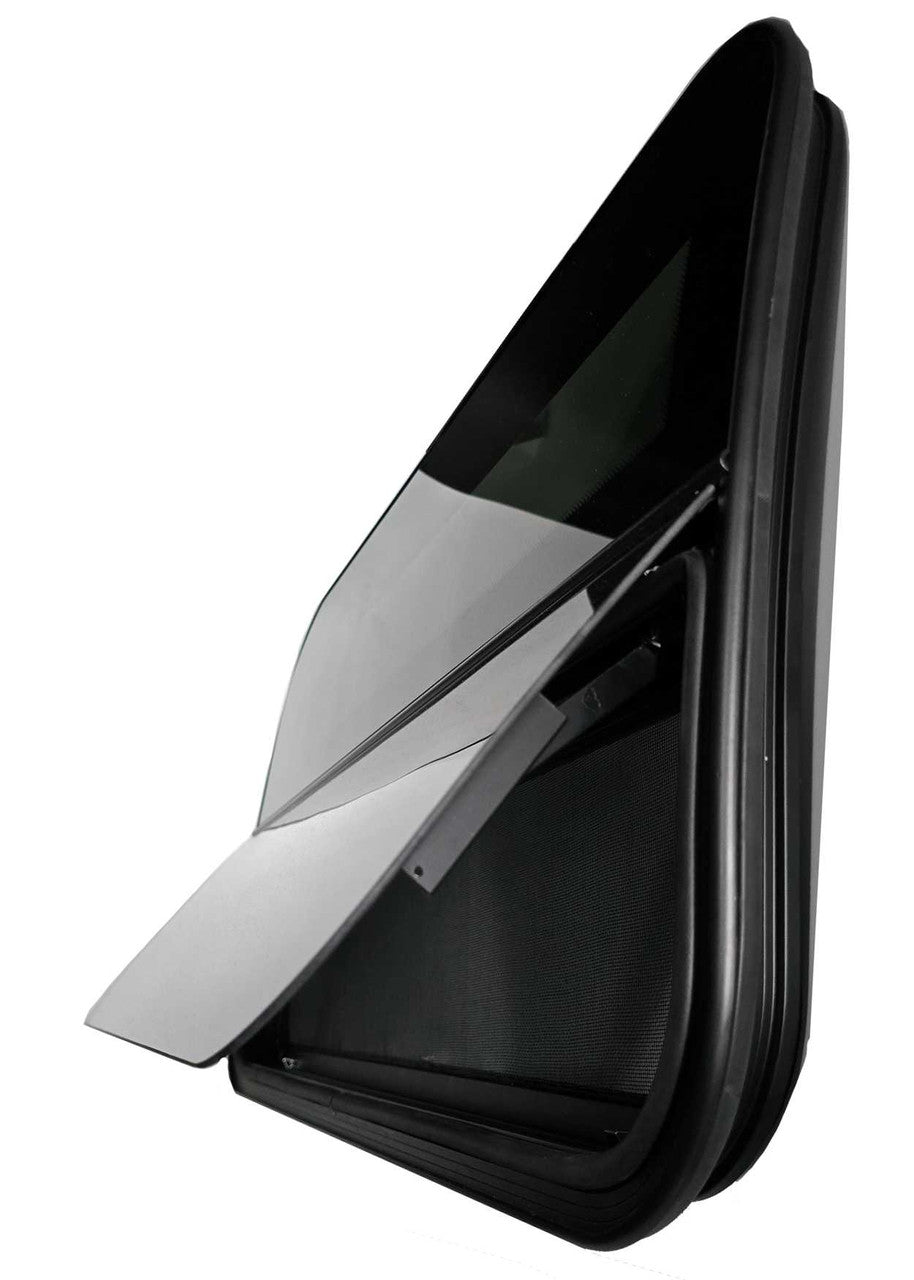

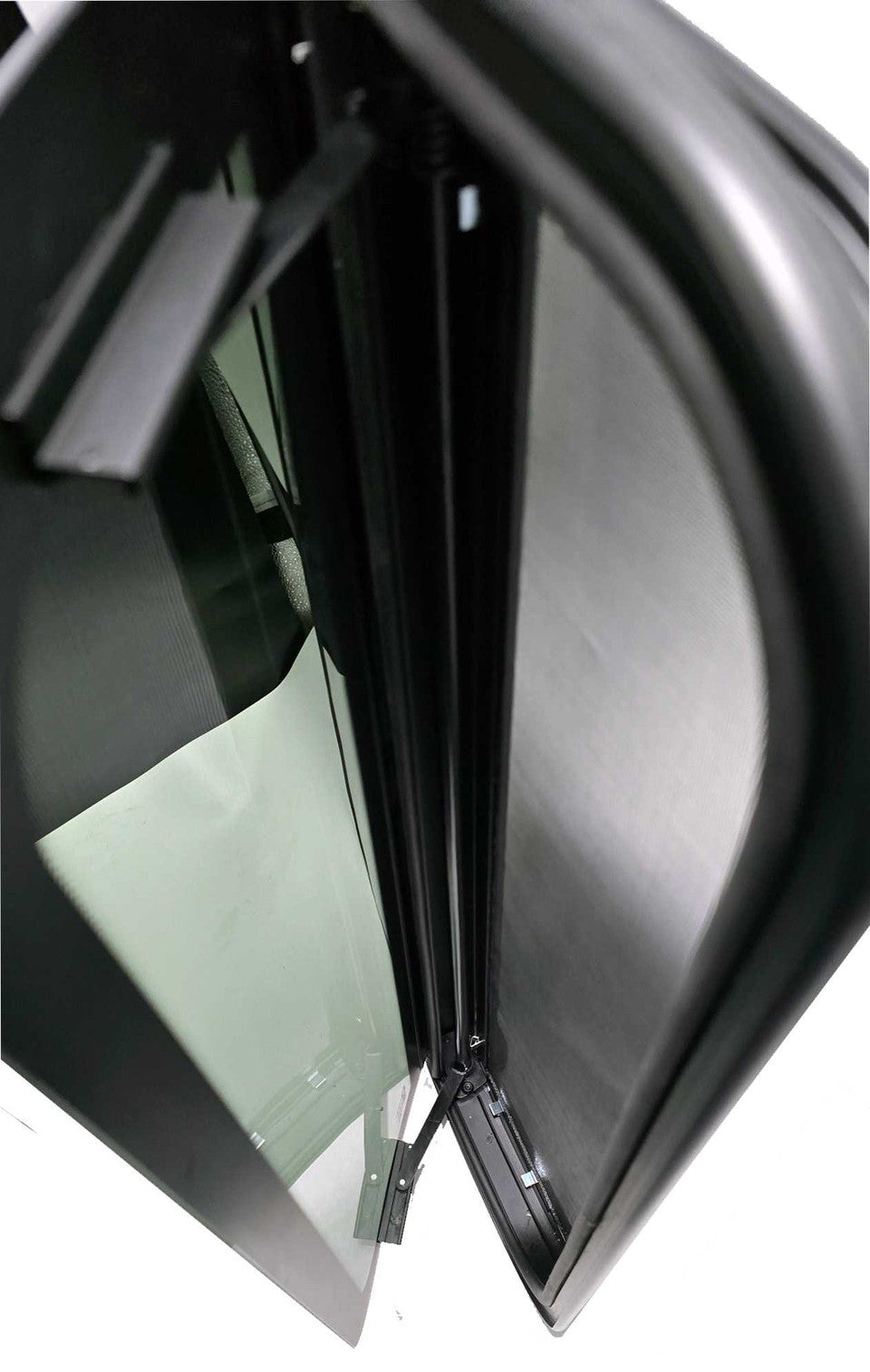

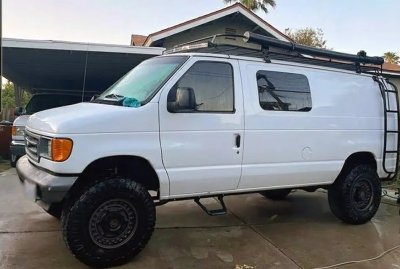

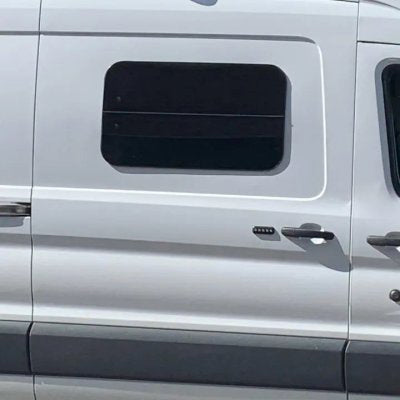

The Van Windows Direct Universal Split-Awning Window (O.D - 33.94" x 19.41")(AW3218S) window has become a popular choice for older van models. It has modern styling, a convenient size, and a large lower glass panel that cranks out like an awning for abundant ventilation and added protection from rainy and snowy conditions.
Note: This van window is very similar to the CR Laurence FW904RS, and is recommended for fitting on older US-made van models with more curved sides. It is not recommended for modern Sprinters, Transit and ProMasters due to its curvature.
Key Features: Van Windows Direct Universal Split-Awning Window (O.D - 33.94" x 19.41")(AW3218S)
- Universal to most 78" radius van walls (recommended for older US-made GM, Chevrolet, Ford vans)
- Color = Solar Privacy Glass
- Contour frame
- UV Rating = 17%
- Installation Type = Clamp Ring
- Mfg Country = China
- Mfg Warranty = 1-Year
- Outside Frame Dimensions: 33.94" X 19.41" (862 x 493 mm)
- Cut-Out Dimensions: 32.68" X 17.91" (830 x 455 mm)
- Awning opens approximately 6.89".

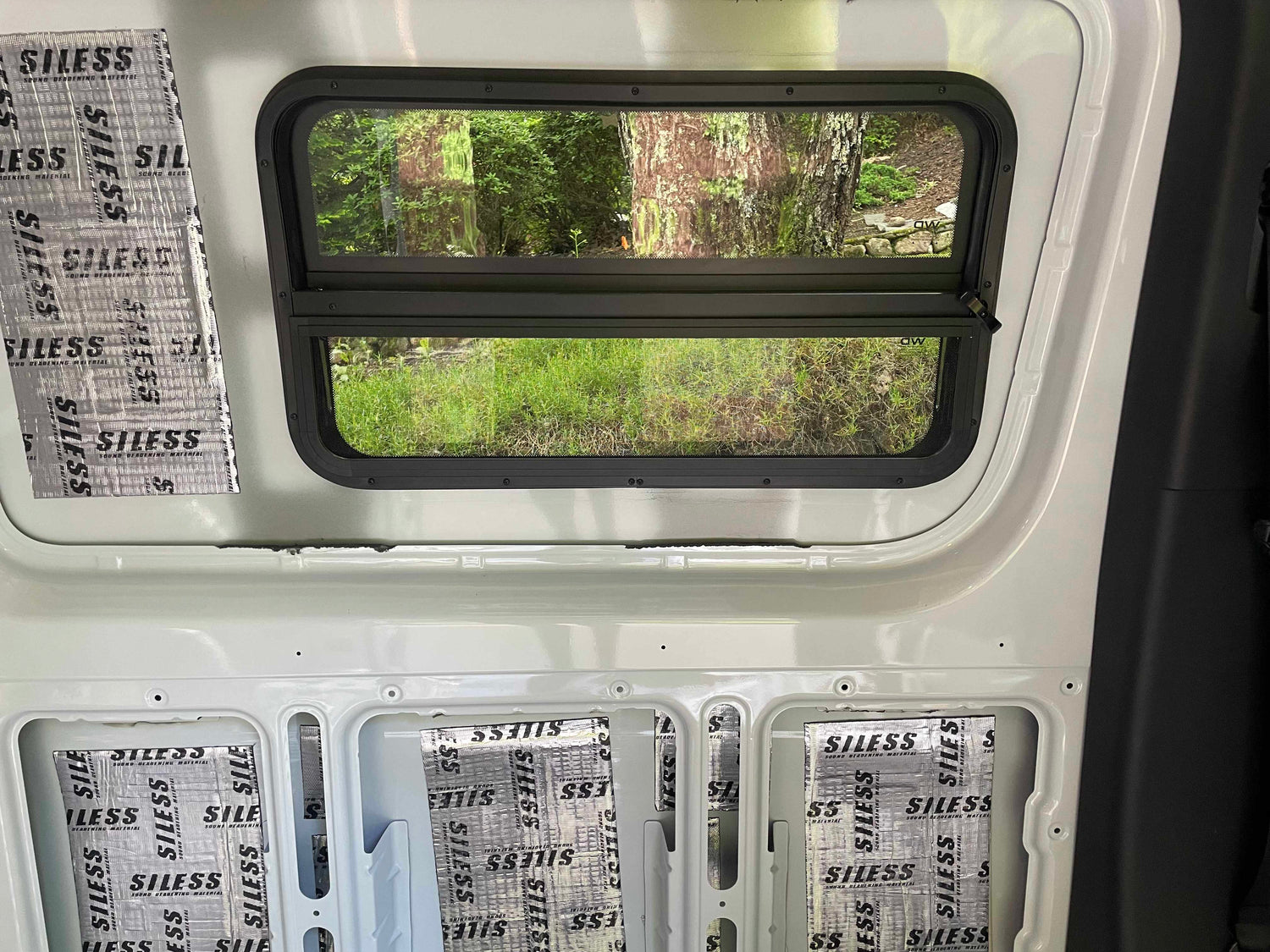

What’s needed to install a clamp-in window?
- Bunk window
- Gasket (included with window)
- Clamp ring (included with window)
- Screws (included with window)
- Bunk window template (not always included)
- Drill & metal drill bits(1/8” max)
- Philips screw driver (hand-tighten all screws)
- Step bit (3/8”-1/2” at least)
- Jigsaw with fine metal blade
- Foam or bristle paint brush
- Auto paint/primer
- Plastic/paper drop-cloths
- Blue painter’s tape
- Safety:
- Gloves
- Eye protection
- Hearing protection
- Face mask
- Long-sleeved shirt
Check out our VAN WINDOWS DIRECT AW3310 CLAMP-IN BUNK WINDOW INSTALL GUIDE for a guide on installing clamp-in bunk windows.
Specifications: Van Windows Direct Universal Split-Awning Window (O.D - 33.94" x 19.41")(AW3218S)
| Frame Style/Radius | Contour/78" |
| Install type | Clamp-in, 1/8" |
| Ventilation Style | Awning(bottom glass only) |
| Awning opening | 6.89" (175 mm) |

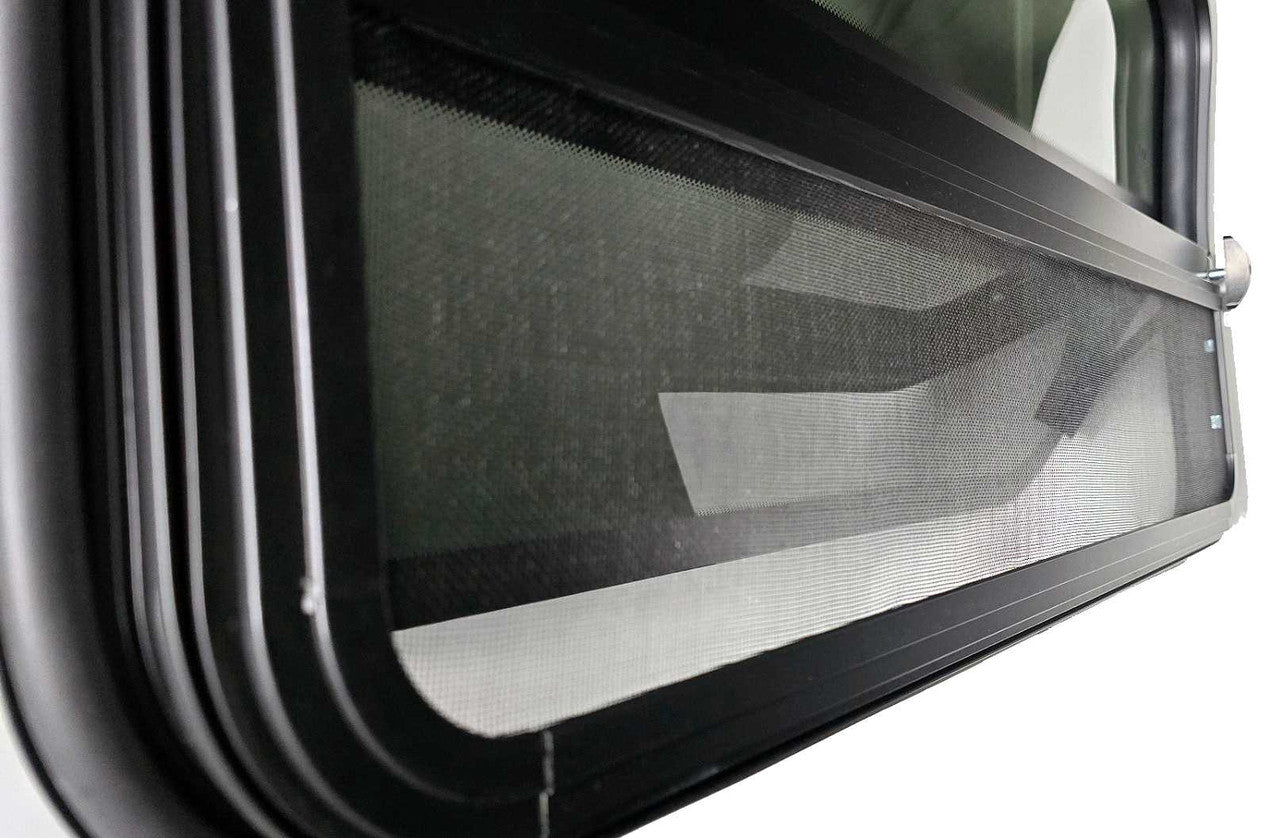

| Screen | 5.83" x 30" (148mm x 762mm) |
|
Cut-Out Dimensions |
32.68" X 17.91" (830 x 455 mm) |
| Outside Frame Dimensions | 33.94" X 19.41" (862 x 493 mm) |
