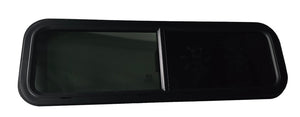

VWD Dual Fan Half-Slider Driver Side Bunk Window (VW3310LF)

NEW

  • $ 349.95



Upgrade your van’s functionality and comfort with the VWD Dual Fan Half-Slider Driver Side Bunk Window (VW3310LF), designed to provide superior ventilation and privacy. This universal-fit window is the perfect solution for adding a fresh air source to your van’s cargo or bunk bed area. It can be installed on fiberglass extensions such as VanSpeed CapsulesFlareSpace, or directly onto the van wall, offering a versatile option for any van conversion project. The window’s sleek design and matte finish also add a touch of elegance to your van’s interior.

Key Features: VWD Dual Fan Half-Slider Driver Side Bunk Window (VW3310LF)

  • Designed to fit universally with campervan and RV installation
  • Designed for Driver Side installation
  • Quiet dual fans - Only 58db at 12in!
  • Color = Solar Privacy Glass
  • UV Rating = 17%
  • Outside Frame Dimensions: 34" x 11"
  • Cut-Out Dimensions: 33" x 10"
  • Clamp Ring Size: 1/8"
  • Slider Opening 14" x 7-3/4"
  • Installation Type = Clamp Ring
  • Clamp Ring Size: 1/8"
  • 12V , Switched Dual Fans (Exhaust)
  • Mfg Country = China
  • Mfg Warranty = 1 Year

More Features: VWD Dual Fan Half-Slider Driver Side Bunk Window (VW3310LF)

  • Solar Privacy Glass: The window features solar privacy glass with a 17% UV rating, blocking 83% of harmful UV rays. This helps keep your van's interior cool while providing protection from the sun.
  • Easy-to-Remove Screen: The window comes with an easy-to-remove screen, making cleaning and maintenance hassle-free.
  • Premium Foam Seal: Ensures a watertight and dustproof fit, keeping your van protected from the elements.

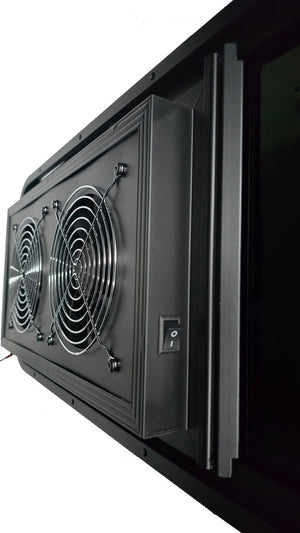

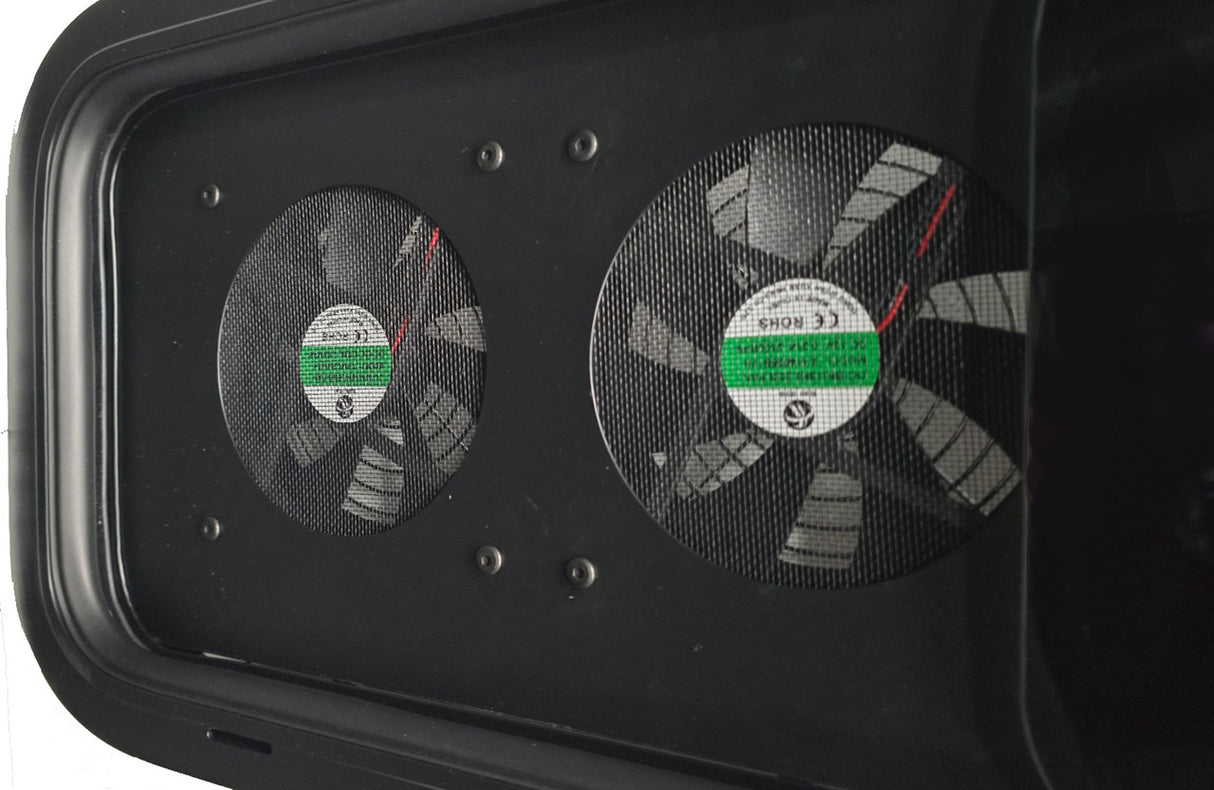

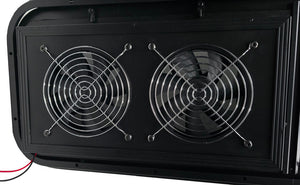

  • 12V Dual-Switched Fans: Boost your ventilation with dual 12V fans, giving you powerful airflow control for increased comfort.
  • Universal Fit: Perfect for van extensions or direct installation onto the van wall, offering flexibility for various van conversion projects.
  • Simple Installation: The precision-engineered 1/8" clamp ring ensures an effortless installation process and a secure fit, designed for long-lasting performance.

Specifications: VWD Dual Fan Half-Slider Driver Side Bunk Window (VW3310LF)

Product Overall Dimensions(Outside Frame)

34" W  x 11" H

Cutout Dimensions

33" W x 10" H

Slider Opening Dimensions

14" W x 7-3/4" H

Clamp ring size

1/8"

Frame Material/Color Painted Aluminum / Black

Fan(s) power supply

12VDC

Amps

0.21A(appr)

Decibels

Only 58db at 12in

Fan settings

Low/High, dual-switch

Fan direction

Exhaust(pulls air out of vehicle)

Fan speed

2100 RPM /325 CFM(High)

Note: This item offers an exhaust fan feature only. It does not pull air inward. Modification has not been tested and not recommended.

Video: Universal Clamp-In Windows

Below are videos showing a guideline of how to install clamp-in windows with 1/8" clamp rings. The same method can be applied to almost any clamp-in window, but be sure to measure your clamp ring inner dimensions and compare to your template before making the cutout.
