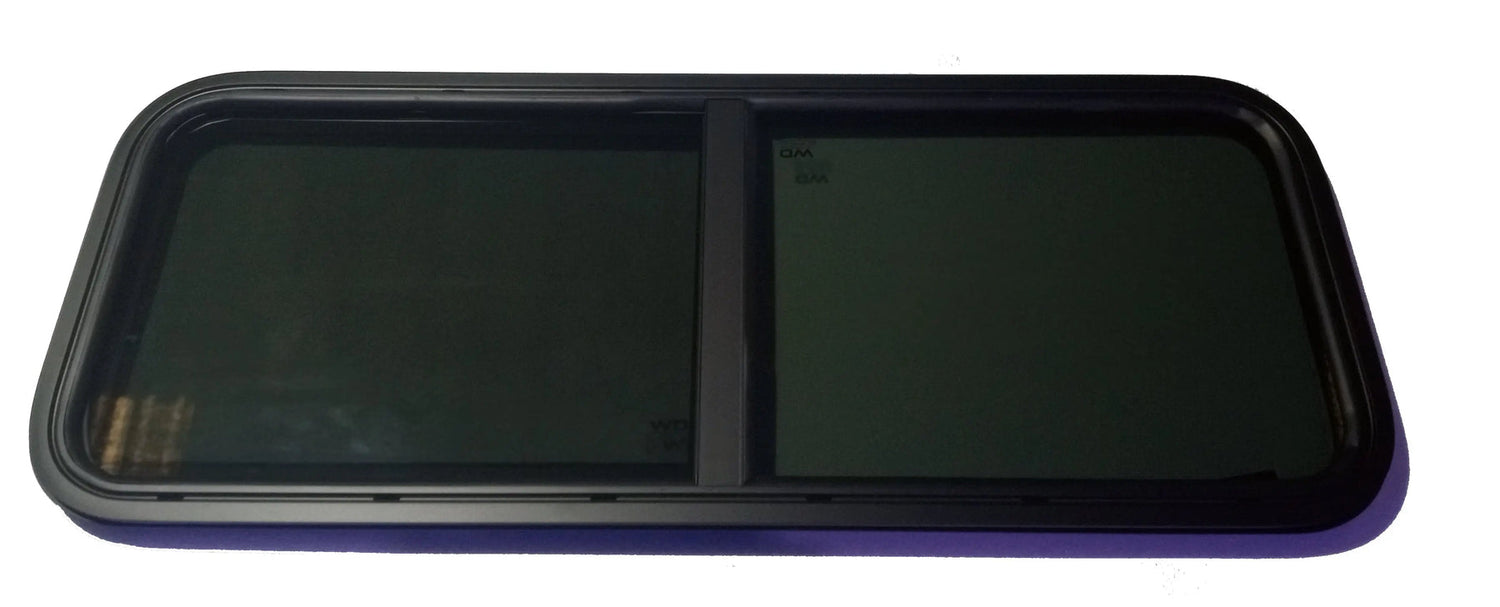

VWD Universal Fit Overlander Van Bunk Window O.D 41-5/16" X 16-5/16" (OVR4015)

  • $ 299.95



GET $399 FLAT RATE SHIPPING ON VWD BRAND WINDOWS WHEN YOU BUY OVER $1500.

VWD $399 flat rate shipping applies to VWD brand windows and install accessories including VWD Trim Lock, SikaFlex Urethane Adhesive, and DOW Single Application Primer only. See shipping breakdown at checkout for details.

Experience ultimate comfort and ventilation in your camper van's bunk area with the VWD Universal Fit Overlander Van Bunk Window O.D 41-5/16" X 16-5/16" (OVR4015). Specially designed for all types of vans and beloved by camper van enthusiasts, this flat half-sliding window is the perfect addition to enhance your travel experience.

Easy Installation and Enhanced Ventilation: Say goodbye to stuffy and cramped spaces! The VWD Overlander Bunk Window brings in a refreshing breeze to your van's rear cargo area, creating a comfortable and inviting atmosphere for your adventures. With its easy-to-install design, you can have this window up and running in no time, making it an excellent choice for both seasoned van lifers and newcomers to the camper van community.

Sleek Design and Privacy Glass: Crafted with meticulous attention to detail, the VWD Overlander Bunk Window features a sleek black aluminum frame that not only adds a touch of elegance to your van's interior but also ensures durability for years to come. The window is encased in solar privacy glass, providing you with a sense of privacy while still allowing ample natural light to filter through.

Versatile Installation Options: Flexibility is key when outfitting your camper van, and the VWD Overlander Bunk Window delivers just that. Its unique design allows for installation on either side of the van, making it convenient for any van layout or preference. No matter the configuration, this window seamlessly blends in with your van's aesthetics, enhancing its overall look.

Smart Drainage System: Designed with practicality in mind, this bunk window incorporates a smart drainage system on both the top and bottom portions. Rest assured, rainwater won't be an issue as it is efficiently channeled away from the window. Additionally, included plugs offer a hassle-free way to cover the top holes once you've determined the optimal window position.

In Summary

Embrace the freedom of the open road with the VWD Universal Fit Overlander Van Bunk Window O.D 41-5/16" X 16-5/16" (OVR4015). Elevate your camper van experience with improved ventilation, sleek aesthetics, and easy installation. Upgrade your van today and embark on unforgettable journeys with enhanced comfort and style!

Key Features: VWD Universal Fit Overlander Van Bunk Window O.D 41-5/16" X 16-5/16" (OVR4015)

  • UnIversal fit half-slider bunk window with solar privacy glass

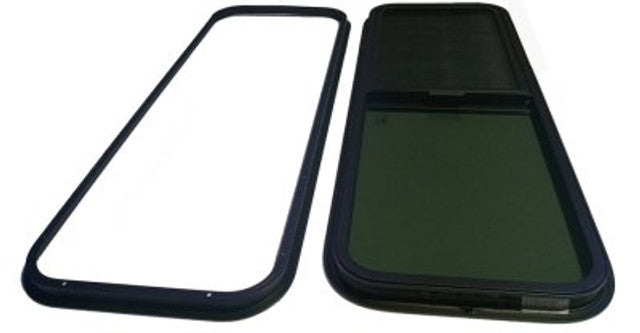

  • Clamp ring installs on 1/8" walls. Doubles as a trim ring.
  • UV Rating = 17%
  • Fixed bug screen
  • Black aluminum frame
  • Drainage system on top and bottom of window. Plugs included for top drains once configuration is decided.
  • Easily installs on either side of the vehicle

Note: This window will only install on flat walls or low curve radius vehicles such as the 2007+ Mercedes Sprinter, 2014+ Ram ProMaster, and 2015+ Ford Transits. This will not work with older Chevy and Ford models with deeper curve side window panels.

What’s needed to install a clamp-in window?

  • Bunk window
    • Gasket (included with window)
    • Clamp ring (included with window)
    • Screws (included with window)
  • Bunk window template
  • Drill & metal drill bits(1/8” max)
  • Philips screw driver (hand-tighten all screws)
  • Step bit (3/8”-1/2” at least)
  • Jigsaw with fine metal blade
  • Foam or bristle paint brush
  • Auto paint/primer
  • Plastic/paper drop-cloths
  • Blue painter’s tape
  • Safety:
    • Gloves
    • Eye protection
    • Hearing protection
    • Face mask
    • Long-sleeved shirt

Check out our VAN WINDOWS DIRECT AW3310 CLAMP-IN BUNK WINDOW INSTALL GUIDE for a guide on installing clamp-in bunk windows.

Specifications: VWD Universal Fit Overlander Van Bunk Window O.D 41-5/16" X 16-5/16" (OVR4015)

Manufacturer Van Windows Direct
Van Type
Universal Fit
MPN OVR4015
Dimensions (L x W x H) 44 x 5 x 19 in
Billable Weight 40 lbs
Installation Type Clamp Ring



OVERLANDER SERIES SPECS





Part/SKU

Exterior (WxH)

Interior (WxH)

Screen Opening (WxH)

Clamp Ring Depth

OVR3009

31-5/16" x 10-3/16"

30" x 9"

12-3/4" x 5-7/8"

1/8"

OVR3511

36-3/4" x 13-1/8"

35-7/16" x 11-7/8

16" x 9-3/8"/8"

1/8"

OVR4015

41-5/16" X 16-5/16"

40" X 15"

17-13/16" x 11-7/8"

1/8"


Video: Clamp Ring Van Window Installation
