VWD Universal Fit Van Bunk Window Driver Side Rear Opening 25-9/16" W x 9-13/16" H (DTBUNK009-INT)
GET $399 FLAT RATE SHIPPING ON VWD BRAND WINDOWS WHEN YOU BUY OVER $1500.
VWD $399 flat rate shipping applies to VWD brand windows and install accessories including VWD Trim Lock, SikaFlex Urethane Adhesive, and DOW Single Application Primer only. See shipping breakdown at checkout for details. This item is not returnable.

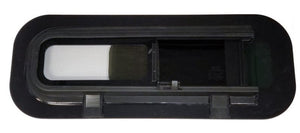

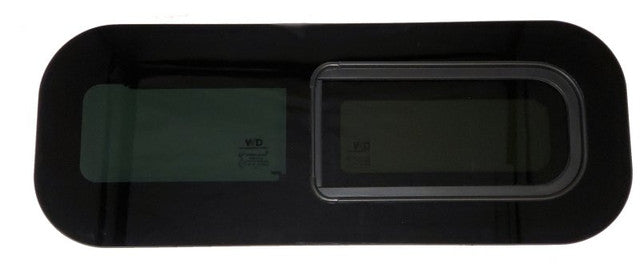

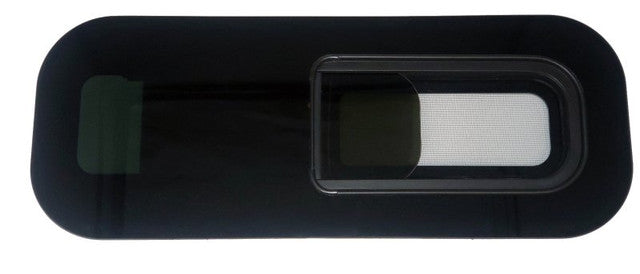

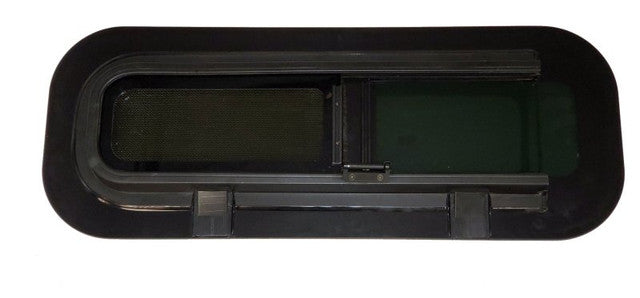

Introducing the VWD Universal Fit Van Bunk Window Driver Side Rear Opening 25-9/16" W x 9-13/16" H (DTBUNK009-INT). This exceptional product offers a slightly larger option in the realm of Van Bunk Windows. Its contemporary design features a frame-less exterior, perfectly complementing the OEM Glass found in today's modern all-glass windows, thus providing a sleek and seamless look.
For enhanced security, the window is equipped with a swing latch that firmly secures it in the closed position. Inside, the all-tight mesh aluminum screen ensures that bugs or small debris are kept at bay, enabling a more comfortable and uninterrupted experience.
Crafted with durability in mind, the screen is thoughtfully set into a rubber channel and boasts an acrylic frame, making it exceptionally long-lasting. Not only does it withstand the test of time, but its ultra-quiet design also minimizes any noise disruptions, contributing to a serene environment while on the move.
The glass itself is no ordinary glass; it features a 15% solar privacy tint safety glass. This tinted glass offers two distinct benefits: it grants an added layer of privacy for occupants within the vehicle, and it provides valuable UV protection, shielding passengers from harmful sun rays.
The VWD Universal Fit Van Bunk Window Driver Side Rear Opening 25-9/16" W x 9-13/16" H (DTBUNK009-INT) is the ideal choice for those seeking a sophisticated, secure, and practical window solution for their van. Elevating both style and functionality, this product promises to enhance the comfort of your cabin, ensuring every journey is a pleasant and enjoyable one.
Key Features: VWD Universal Fit Van Bunk Window Driver Side Rear Opening 25-9/16" W x 9-13/16" H (DTBUNK009-INT)
- Universal fit single-pane automotive glass window with sliding panel and fixed bug screen.
- Swing latch secures the window in the closed position for security
-
Solar privacy glass
- Excellent thermal performance with a 15% UV filter rating.
- Manufactured with tempered safety glass that meets or exceeds DOT/SAE standards.
- 1-year warranty.
Specifications: VWD Universal Fit Van Bunk Window Driver Side Rear Opening 25-9/16" W x 9-13/16" H (DTBUNK009-INT)
Manufacturer | Van Windows Direct |
Placement on Van | Driver Side (Rear Opening) |
MPN | DTBUNK009-INT |
Cut-Out Dimensions | 22-3/4" x 7-3/4" |
Outer Dimensions |
25-9/16" x 9-13/16" |
Vent Opening Size | 11-1/4" x 5-3/4" |
Installation Type | Urethane Bonded |
What’s needed to install a bond-in window?
Qty: 1-2 tubes for small and medium size windows.
Qty: 2 tubes for large windows.
DOW Single Application Primer
Qty: 1x, (10mL) tube for two bunk windows.
Qty: 2x, (10mL) tubes for 2 large windows.
Qty: 3x, (10mL) tube for 4 large windows.
Qty: 4x, (10mL) tubes for 6-8 windows(full window set).
Trim lock or window gasket for the cut metal edge. This window's compatible option can be found in this page's Frequently Bought Together section. Trim Lock is not recommended for smaller bond-in bunk windows to allow proper adhesive compression and seal.
Check out our How to Install Bonded Van Windows blog article for more details or the video at the bottom of this page.
VWD Universal Fit Van Bunk Window Comparison Table
Part/SKU |
Vehicle Side |
Cut-Out |
Slider Opening |
DTBUNK011-INT |
Driver Side |
14-1/4"W x 14-1/2"W |
5-1/2"W x 11-1/2"H |
DTBUNK012-INT |
Passenger Side |
14-1/4"W x 14-1/2"W |
5-1/2"W x 11-1/2"H |
DTBUNK006-INT |
Driver Side |
27.5" x 7.5" |
12.6"W x 5.91"H |
DTBUNK005-INT |
Passenger Side |
27.5" x 7.5" |
12.6"W x 5.91"H |
DTBUNK007-INT |
Driver Side |
36.5" x 12" |
16.5" x 9" |
DTBUNK008-INT |
Passenger Side |
36.5" x 12" |
16.5" x 9" |
Video: How to Install Bonded Windows
