VWD Vertical Lift Slider Van Window (VERT1522)

  • $ 259.95



GET $399 FLAT RATE SHIPPING ON VWD BRAND WINDOWS WHEN YOU BUY OVER $1500.

VWD $399 flat rate shipping applies to VWD brand windows and install accessories including VWD Trim Lock, SikaFlex Urethane Adhesive, and DOW Single Application Primer only. See shipping breakdown at checkout for details.

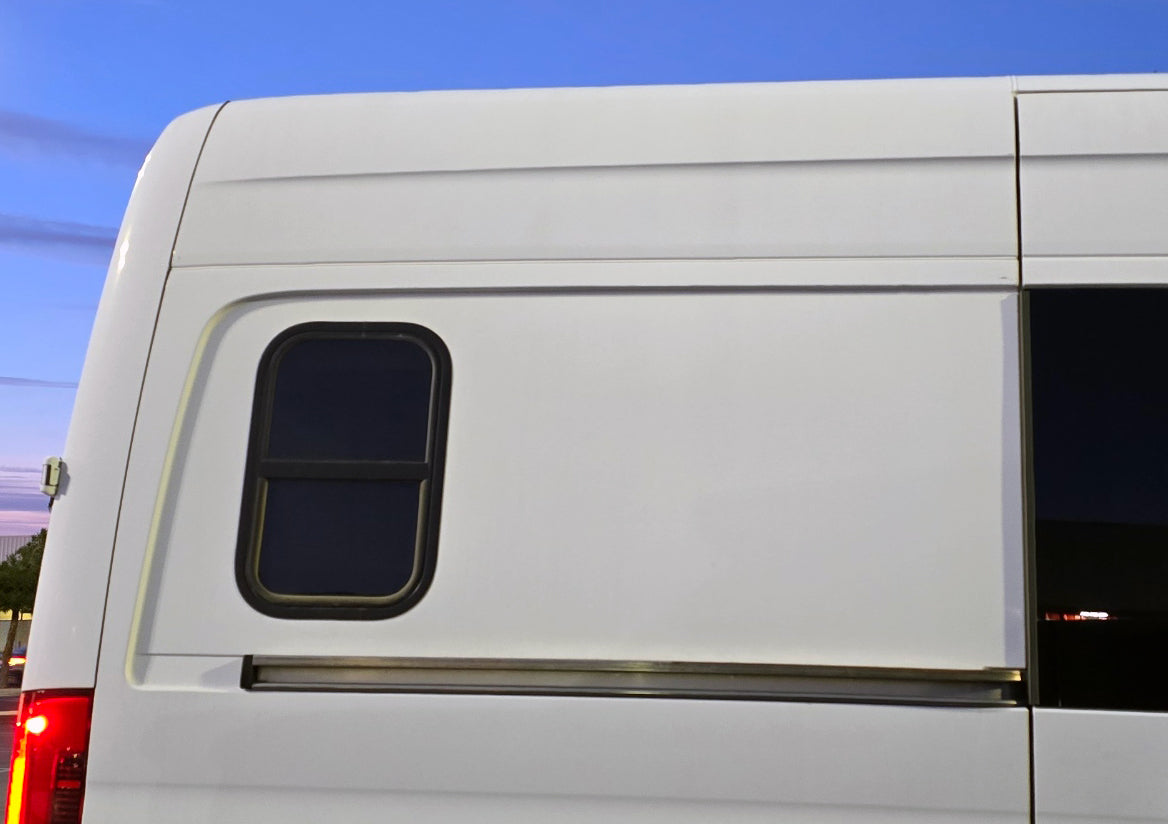

Enhance your campervan's style & comfort with the VWD Vertical Lift Slider Van Window(VERT1522)! Sleek, dark solar privacy glass filters 83% UV rays. It's durable, black powder-coated aluminum frame ensures strength & style. Effortlessly slide the lower panel up for airflow & customizable ventilation. Weep holes built in to the frame allow any water to escape the slider track while washing the vehicle or a heavy rain, making this a perfect ventilated window. Includes screw pack, foam seal & cut-out template for easy installation.

Key Features: VWD Vertical Lift Slider Van Window (VERT1522)

  • Fits universally for most modern campervans and RV's where space allows
  • Fits 2007+ Mercedes Sprinter, 2015+ Ford Transits, and 2014+ Ram ProMaster cargo vans
  • Color = Solar Privacy Glass
  • Flat walls recommended
  • UV Rating = 17%
  • Installation Type = Clamp Ring
  • Clamp Ring Size: 1/8"
  • Slider Opening: 335mm x 220mm    (13-3/16" x 8-2/3")
  • Foam Seal & Screw Pack Included
  • Template Included(Nice!)
  • Mfg Country = China
  • Mfg Warranty = 1-Year

NOTE: If considering installing on a campervan or Class B cargo van, we recommend installing on the rear doors or the flattest part of any side panels since curvature is present in most modern Class B cargo van bodies. It is not recommended to install on 78" radius van walls like the older US-made GM, Chevrolet, Ford vans. For those models, we recommend the VWD-AW3218S.

What’s needed to install a clamp-in window?

  • Bunk window
    • Gasket (included with window)
    • Clamp ring (included with window)
    • Screws (included with window)
  • Bunk window template
  • Drill & metal drill bits(1/8” max)
  • Philips screw driver (hand-tighten all screws)
  • Step bit (3/8”-1/2” at least)
  • Jigsaw with fine metal blade
  • Foam or bristle paint brush
  • Auto paint/primer
  • Plastic/paper drop-cloths
  • Blue painter’s tape
  • Safety:
    • Gloves
    • Eye protection
    • Hearing protection
    • Face mask
    • Long-sleeved shirt

Check out our VAN WINDOWS DIRECT AW3310 CLAMP-IN BUNK WINDOW INSTALL GUIDE for a guide on installing clamp-in bunk windows.

Specifications: VWD Vertical Lift Slider Van Window (VERT1522)

Outside Frame Dimensions 415mm x 592mm  (16-1/3" x 23-5/16")WxH
Cut-Out Dimensions 381mm x 559mm  (15" x 22")WxH
Clamp Ring Size(Wall thickness max) 1/8"
Slider Opening 335mm x 220mm    (13-3/16" x 8-2/3")WxH
Flowable Opening Lock Position 1 335mm x 100mm (13-3/16" x 3-15/16")WxH
Flowable Opening Lock Position 2 335mm x 190mm(13-3/16" x 7-1/2")WxH
