Looking for camper van windows for your ProMaster, Transit or Sprinter van conversion, but not sure where to start? We're breaking down and linking all van window models and panel sections in this article.

What's a van panel section?

Your van has 2-3 driver and passenger side van panel sections, depending on the van type.

Depending on your van model and wheelbase length, you'll need to select the proper window to fit your designated van panel section. Van panel sections are separated by either driver or passenger side windows and categorized by section position including: forward, middle, rear quarter, and rear cargo door van panel sections (or van window templates).

Check out our camper van window guide by van model and section, and click through the links below to shop.

Click below to jump to your van model.

Looking for camper van window installation help for your DIY van conversion?

CLICK HERE TO JUMP TO DIY VAN WINDOWS INSTALLATION GUIDES



RAM PROMASTER VAN WINDOWS

2014+ Ram ProMaster vans offer low, high or super high roof van models in either 136", 159", or 159: EXT van wheelbase (WB) lengths.

What do I need to know when shopping for ProMaster van windows?

To find the right ProMaster van windows for your camper van you'll need to know the year model, the wheelbase length or WB, and the roof height.

All ProMaster van windows including low roof, high roof, and super high roof models have the same van window panel section width and height, depending on the WB length.

2014+ ProMaster 136" WB low, high, and super high roof vans fit the same windows in all sections.

  1. Driver Forward
  2. Passenger Forward (Sliding Door)
  3. Driver Rear Quarter
  4. Passenger Rear Quarter
  5. Rear Cargo Door Driver
  6. Rear Cargo Door Passenger

See below for ProMaster 136" van window diagram chart:

2014+ PROMASTER LOW/HIGH ROOF 136" WB CAMPER VAN WINDOW POSITIONS

Promaster Campervan 136" Low/High Roof
Promaster Campervan 136" Low/High Roof

PROMASTER 159" LOW/HIGH ROOF CAMPER VAN WINDOW POSITIONS

2014+ ProMaster 159" WB low, high, and super high roof vans fit the same windows in all sections:

  1. Driver Forward
  2. Passenger Forward (Sliding Door)
  3. Driver Middle
  4. Passenger Middle
  5. Driver Rear Quarter
  6. Passenger Rear Quarter
  7. Rear Cargo Door Driver
  8. Rear Cargo Door Passenger

What's the difference between a 159" and 159" Ext ProMaster camper van?

Both ProMaster 159" WB and 159" WB Ext (extended) camper vans fit the same windows in all but the rear quarter van window position. ProMaster 159" WB ext rear quarter van windows are slightly larger than 159" WB.

You can add a fixed or vented van window to most van panel sections. See below for 2014+ ProMaster 159" WB van window positions:



Promaster Campervan 159" Low/High Roof

Promaster Camper van 159" Low/High Roof



PROMASTER 159" EXT LOW/HIGH ROOF CAMPER VAN WINDOWS

2014+ ProMaster 159" Ext WB low, high, and super high roof vans fit the same windows in all sections:

  1. Driver Forward
  2. Passenger Forward (Sliding Door)
  3. Driver Middle
  4. Passenger Middle
  5. Driver Rear Quarter
  6. Passenger Rear Quarter
  7. Rear Cargo Door Driver
  8. Rear Cargo Door Passenger

What's the difference between a 159" Ext WB and 159" WB ProMaster camper van?

Both ProMaster 159" Ext (extended) WB and 159" WB camper vans fit the same windows in all but the rear quarter van window position. ProMaster 159" WB ext rear quarter van windows are slightly larger than 159" WB.

You can add a fixed or vented van window to most van panel sections. See below for 2014+ ProMaster 159" Ext WB van window positions:

Promaster Camper van 159" EXT Low/High Roof
Promaster Camper van 159" EXT Low/High Roof

PROMASTER 136",159", 159" EXT REAR CARGO DOORS LOW/HIGH ROOF

2014+ ProMaster Rear Cargo Door van windows are sold individually, not in pairs. ProMaster Rear Cargo Door van windows fit any wb length or roof height the same. Choose the from either vented cargo door ProMaster van windows or fixed ProMaster van windows.

  1. Vented Cargo Door Van Windows
  2. Fixed Cargo Door Van Window



Promaster Camper van 136"/159"/159" EXT Low/High Roof

Ford Transit CAMPER VAN WINDOWS

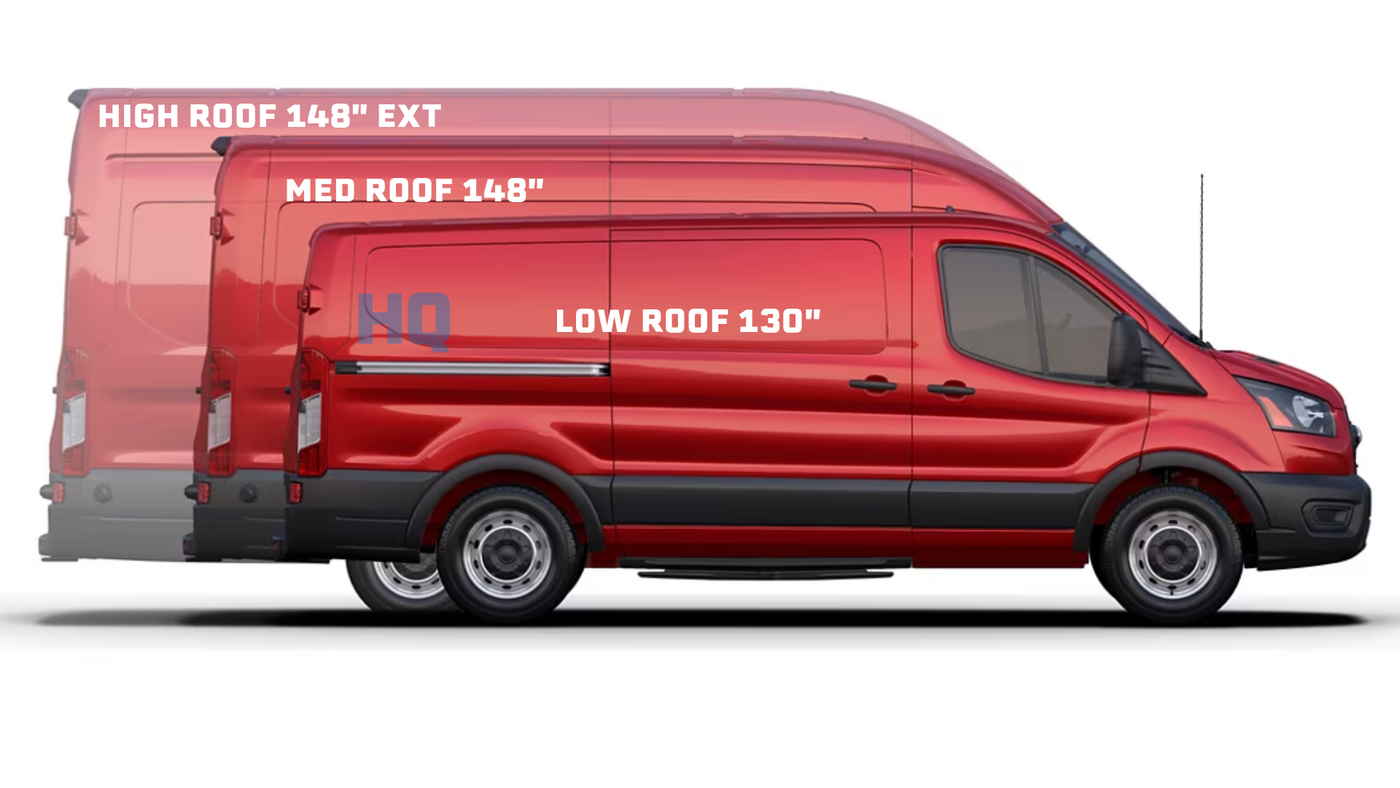

Ford Transit camper vans are available in 3 roof heights. The most popular Transit camper van models you'll see on the road are medium roof Ford Transit 148" or 148" EXT or extended (also called 148" EL for extra-long) or high roof Ford Transit 148" or 148" EXT/EL, but you can also find low roof 130" to 148" Ford Transit vans.

What do I need to know when shopping for Transit van windows?

To find the right Transit van windows for your camper van you'll need to know the year model, the wheelbase (WB) length, and the roof height.

Medium roof Transit vans and High roof Transit van window templates are designed to fit the same size Transit van windows in the forward and middle driver and passenger positions, depending on the wheelbase (WB) length.

2015+ Transit Med/High Roof rear quarter van windows vary in size for both 148" and 148" EXT Ford Transit vans. See the diagram below for WB length details:

Note: all 2015+ Transit camper van low roof models require low roof windows and will not fit Med/High roof Transit van windows.
Ford Transit Van windows 148"/148"EXT/130"

FORD TRANSIT 148" MED/HIGH ROOF CAMPER VAN WINDOW POSITIONS

2015+ Transit 148" WB medium and high roof vans fit the same windows in all sections:

  1. Driver Forward
  2. Passenger Forward (Sliding Door)
  3. Driver Middle
  4. Passenger Middle
  5. Driver Rear Quarter
  6. Passenger Rear Quarter
  7. Rear Cargo Door Driver
  8. Rear Cargo Door Passenger

What's the difference between a 148" WB and 148" EXT/EL WB Transit camper van?

Both Transit 148" Ext WB and 148" WB med/high roof camper vans fit the same windows in all but the rear quarter van window position. Transit 148" EXT/EL WB rear quarter van windows are slightly larger than 148" WB.

You can add a fixed or vented van window to most van panel sections. See below for 2015+ Transit 148" WB Med/High Roof van window positions:

Ford Transit 148" Camper van windows
Ford Transit 148" Camper van windows

FORD TRANSIT 148" EXT/EL MED/HIGH ROOF CAMPER VAN WINDOW POSITIONS

2015+ Transit 148" EXT/EL WB medium and high roof vans fit the same windows in all sections:

  1. Driver Forward
  2. Passenger Forward (Sliding Door)
  3. Driver Middle
  4. Passenger Middle
  5. Driver Rear Quarter
  6. Passenger Rear Quarter
  7. Rear Cargo Door Driver
  8. Rear Cargo Door Passenger

What's the difference between a 148" WB and 148" EXT/EL WB Transit camper van?

Both Transit 148" Ext/EL WB and 148" WB med/high roof camper vans fit the same windows in all but the rear quarter van window position. Transit 148" EXT/EL WB rear quarter van windows are slightly larger than 148" WB.

You can add a fixed or vented van window to most van panel sections. See below for 2015+ Transit 148" EXT/EL WB Med/High Roof van window positions:

Ford Transit 148" EXT/EL Camper van windows
Ford Transit 148"/148" EXT/EL Camper van windows

FORD TRANSIT 148" AND 148" EXT/EL MED/HIGH ROOF CAMPER VAN WINDOW POSITIONS

Transit 148" and 148" EXT REAR CARGO DOORS MED/HIGH ROOF

2015+ Ford Transit Rear Cargo Door van windows are sold individually, not in pairs. Transit Rear Cargo Door van windows fit any WB length or Med/High roof height the same. Choose the from either vented cargo door Transit van windows or fixed Transit van windows.

  1. Vented Driver Side Cargo Door Van Windows
  2. Vented Passenger Side Cargo Door Van Windows
  3. Fixed Driver Side Cargo Door Van Window
  4. Fixed Passenger Side Cargo Door Van Window
Ford Transit 148" Camper van windows

2015+ Ford Transit Low Roof Camper Van

Low roof Ford Transits are in a category all their own. Med/High Roof Transit van windows aren't compatible with a Transit low roof van due to the smaller roof height and van window panel design.

You can see when comparing the above med/high roof Transit camper van models to the below low roof Transit van models, the van window panel section is much smaller and shaped slightly different.

See below for 2015+ Transit low roof van window panel sections by driver and passenger sides.



Ford Transit Low Roof Camper van
          Ford Transit Low Roof Camper van
          Ford Transit Low Roof Camper van

          Mercedes Sprinter CAMPER VAN WINDOWS

          2007+ Mercedes Sprinter camper vans are available in 2 roof height: low and high, and 3 wheelbase (WB) lengths: 144", 170" and 170" EXT.

          Sprinter camper van windows fit low and high roof vans the same, depending on the WB length. For example, both Sprinter 170" WB and Sprinter 170" Ext WB lengths fit the exact same windows, including the rear quarter panel. While the Sprinter 144" WB length requires a 144" specific rear quarter van window, and will not fit any other WB length.

          See below for Sprinter camper van windows by WB length and van panel section:

          MERCEDES SPRINTER 144" WB LOW/MED/HIGH ROOF CAMPER VAN WINDOW POSITIONS

          2007+ Sprinter 144" WB low and high roof vans fit the same windows in all sections:

          1. Driver Forward
          2. Passenger Forward (Sliding Door)
          3. Driver Rear Quarter
          4. Passenger Rear Quarter

          NOTE: Rear Cargo Doors differ on 2007-2018 and 2019+ Sprinter Van Windows. See Sprinter Rear Cargo Door Windows below for details.

          You can add a fixed or vented van window to most van panel sections. See below for 2007+ Sprinter 144" WB van window positions:

          Mercedes Sprinter 144" WB Low/High roof Camper van windows
          Mercedes Sprinter 144" WB Low/High roof Camper van windows

          MERCEDES SPRINTER 170" AND 170" EXT WB LOW/MED/HIGH ROOF CAMPER VAN WINDOW POSITIONS

          2019+ Sprinter 170" WB and 170" Ext WB low and high roof vans fit the same windows in all sections:

          1. Driver Forward
          2. Passenger Forward (Sliding Door)
          3. Driver Middle
          4. Passenger Middle
          5. Driver Rear Quarter
          6. Passenger Rear Quarter

          NOTE: Rear Cargo Doors differ on 2007-2018 and 2019+ Sprinter Van Windows. See Sprinter Rear Cargo Door Windows below for details.

          What's the difference between a 170" WB and 170" EXT/EL WB Sprinter camper van?

          Both 2019+ Sprinter 170" Ext WB and 170" WB low/high roof camper vans fit the same windows in all sections. The extension for 170" EXT WB lengths Sprinter camper vans doesn't not interfere with the rear quarter panel window position. Therefore, both low or high 170" and 170" Ext van windows fit exactly same.

          You can add a fixed or vented van window to most van panel sections. See below for 2019+ Sprinter 170" EXT/EL WB Low/High Roof van window positions:



          Mercedes Sprinter 170"/170" EXT Low/High roof Camper van windows



          Mercedes Sprinter 170"/170" EXT Low/High roof Camper van windows

          2019 + MERCEDES SPRINTER 144" WB LOW/MED/HIGH ROOF REAR DOOR CAMPER VAN WINDOW POSITIONS

          2019+ Sprinter 144", 170" and 170" EXT rear cargo doors low/high roof van windows are sold individually, not in pairs. 2019+ Sprinter Rear Cargo Door van windows fit any WB length or low/high roof the same. Choose the from either vented cargo door 2019+ Sprinter van windows or fixed 2019+ Sprinter van windows.

          1. Vented Cargo Door Van Windows
          2. Fixed  Cargo Door Van Window

          NOTE: Rear Cargo Doors differ on 2007-2018 and 2019+ Sprinter Van Windows. See Sprinter Rear Cargo Door Windows 2007-2018 models below for details.

          Mercedes Sprinter 144"/170"/170" EXT Low/High roof Camper van windows

          2007-2018 MERCEDES SPRINTER 144" WB LOW/MED/HIGH ROOF REAR DOOR CAMPER VAN WINDOW POSITIONS

          2007-2018 Sprinter 144", 170" and 170" EXT rear cargo doors low/high roof van windows are sold individually, not in pairs. Sprinter Rear Cargo Door van windows fit any WB length or low/high roof the same. Choose the from either vented cargo door 2007-2018 Sprinter van windows or fixed 2007-2018 Sprinter van windows.

          1. Fixed Passenger Side Cargo Door Van Window
          2. Fixed Driver Side Cargo Door Van Window
          3. Vented Driver Side Cargo Door Van Windows
          4. Vented Passenger Side Cargo Door Van Windows

          NOTE: Rear Cargo Doors differ on 2007-2018 and 2019+ Sprinter Van Windows. See 2019+ Sprinter van Rear Cargo Door Windows above for details on 2019+ Sprinter van models.

          2007-2018 Sprinter Cargo Door Van Windows

          Ready to Save on Windows?

          Now that you have a better understanding of which windows work best for your build here's out tips for saving on your van window purchase!

          1. Save on shipping when you buy all windows from the same brand. Purchase over $1500 VWD brand windows to earn our $399 flat rate shipping cost anywhere in the lower 48 US states.
          2. Choose pick up for VWD and CRL brand windows. CRL offers more locations across country. See drop down menu on product pages for details.
          3. Shop for lighter windows from Tern Overland, bunk windows that typically ship for around $30 each, or fixed glass van windows to find cheaper van windows and save on shipping.

          How to install camper van windows?

          We offer van window installation guides for bonded, clamp-in van windows, including full glass and bunk windows. See below for installation guide links:

          How to Install Bond-in Windows

          How to install Clamp-in Bunk Windows

          Van Windows Guide

          Shop by Van Model Now

          ProMaster 136" WB Van Windows

          ProMaster 159" WB Van Windows

          ProMaster 159" Ext  Van Windows

          Transit 130" WB Low Roof Van Windows

          Transit 148" Med/High Roof Van Windows

          Transit 148" Ext/EL WB Med/High Roof Van Windows

          Sprinter 144" WB Van Windows

          Sprinter 170" WB Van Windows

          Sprinter 170" Ext WB Van Windows
