Arctic Tern Cargo Door (500x400mm, Side Hinge) by Tern Overland

$ 40300

 More payment options

Earn 1,209 Points when you buy this item.

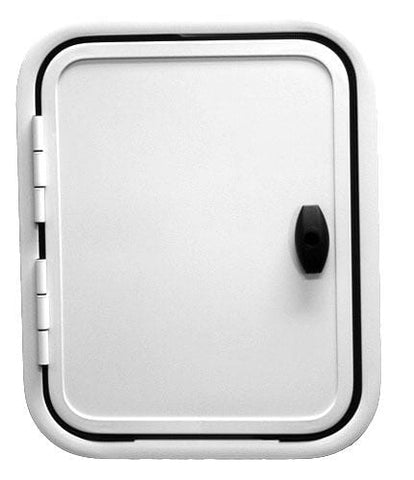

This sleek Arctic Tern Cargo Door (500x400mm, Side Hinge) provides the perfect finish to any build. Arctic Tern cargo doors feature powder-coated aluminum skins and frames with substantial insulation. The locks are European-made and provide secure weather-tight sealing. Rounded corners prevent cracking in composite walls. These cargo doors are warranted for one year against defects in workmanship and materials.

Key Features: Arctic Tern Cargo Door (500x400mm, Side Hinge)

  • Powder coated aluminum skins and frames with substantial insulation

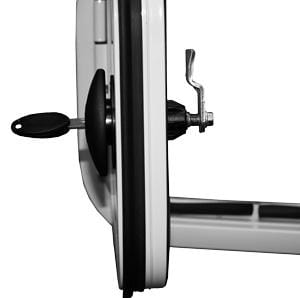

  • The locks are European made and provided secure weather tight sealing
  • Rounded corners prevent cracking in composite walls
  • High quality rubber seals
  • Includes one latch on doors 700mm wide or less, two latches on larger doors.
  • All doors open 180 degrees (130 degrees with gas struts)
  • Gas struts are mounted on doors with height 400mm or greater, doors without gas struts will ship with a door holder clip
  • Doors must be mounted with the hinge in its’ assigned position (ie, a top hinge door must be mounted with the hinge on top)
  • Optional matching keys, if you purchase multiple cargo doors, or entry doors (add $5 per lock)
  • We recommend Bostik Adhesive for installation. One full tube will do one roof hatch, one larger cargo door, or two smaller cargo doors. Two tubes will do a large entry door.
  • Add NOVUS Acrylic Care Kit to your order for caring for all Arctic Tern products.



            Specifications: Arctic Tern Cargo Door (500x400mm, Side Hinge)

            Cargo Doors Imperial Measurement Cut Hole Size Pass-Through Size Overall Size
            (H x W) mm (H x W) in (H x W) in
            (H x W) in
            (H x W) in

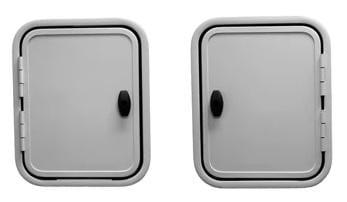

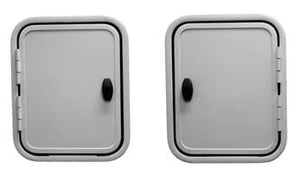

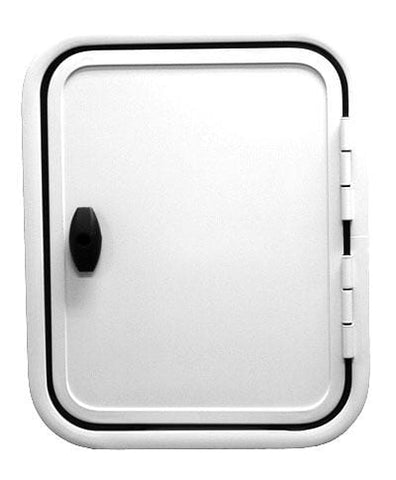

            500x400 right hinge, 1 lock 19.69" x 15.75" 19.80''x15.86'' 17.79''x13.85'' 20.78''x16.85''
            500x400 left hinge, 1 lock 19.69" x 15.75" 19.80''x15.86'' 17.79''x13.85'' 20.78''x16.85''



            Documents: Arctic Tern Cargo Door (500x400mm, Side Hinge)

            Arctic Tern Cargo Door Installation Guide

            Arctic Tern Considerations for Fitment - Cargo Doors

            Bostik Adhesive TSD

            Bostik Adhesive Safety Data Sheet
