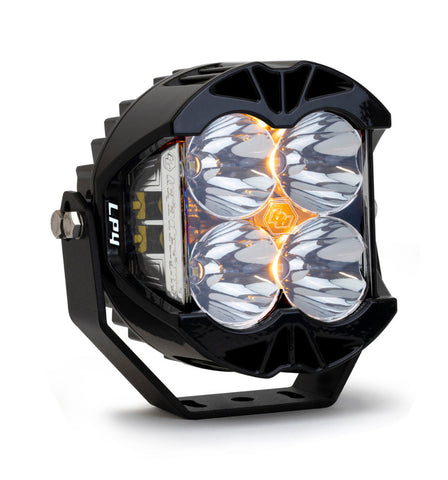

Baja Designs LP4 Pro LED Auxiliary Light Pod
FREE SHIPPING
Introducing the Baja Designs LP4 Pro LED Auxiliary Light Pod:

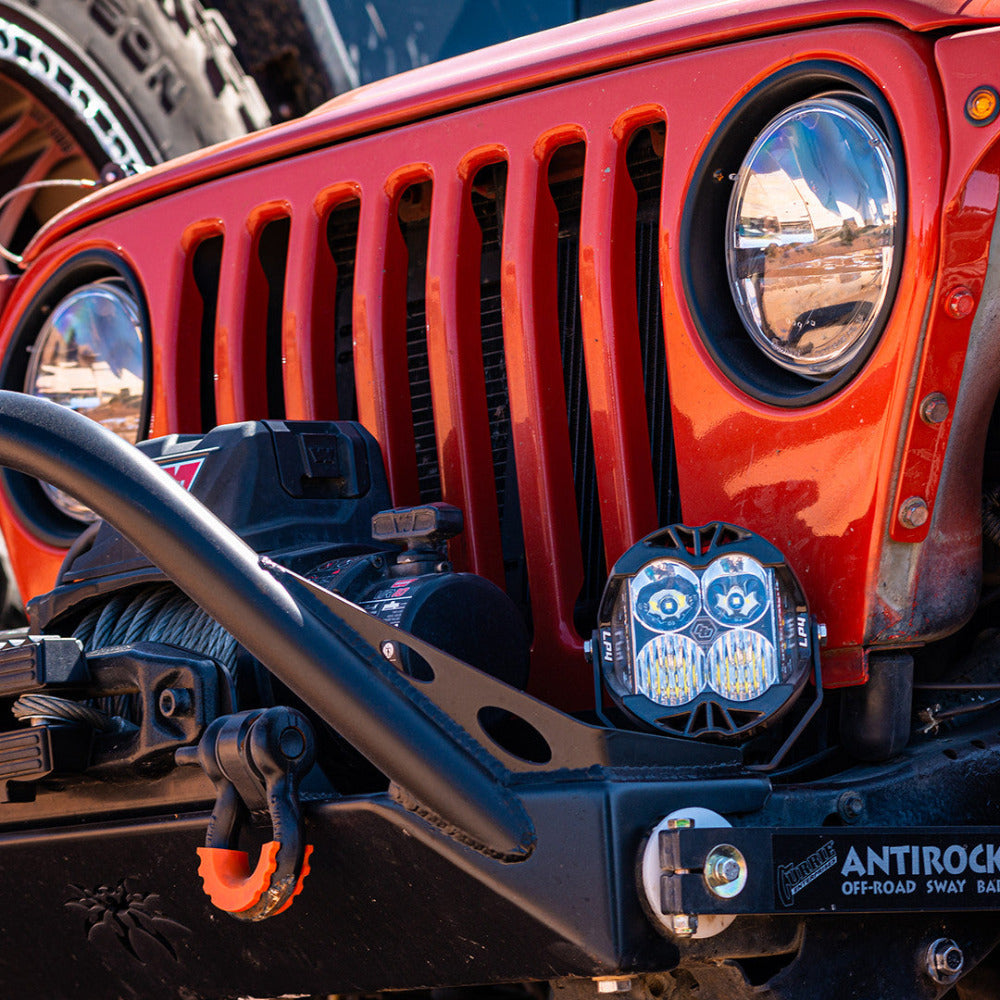

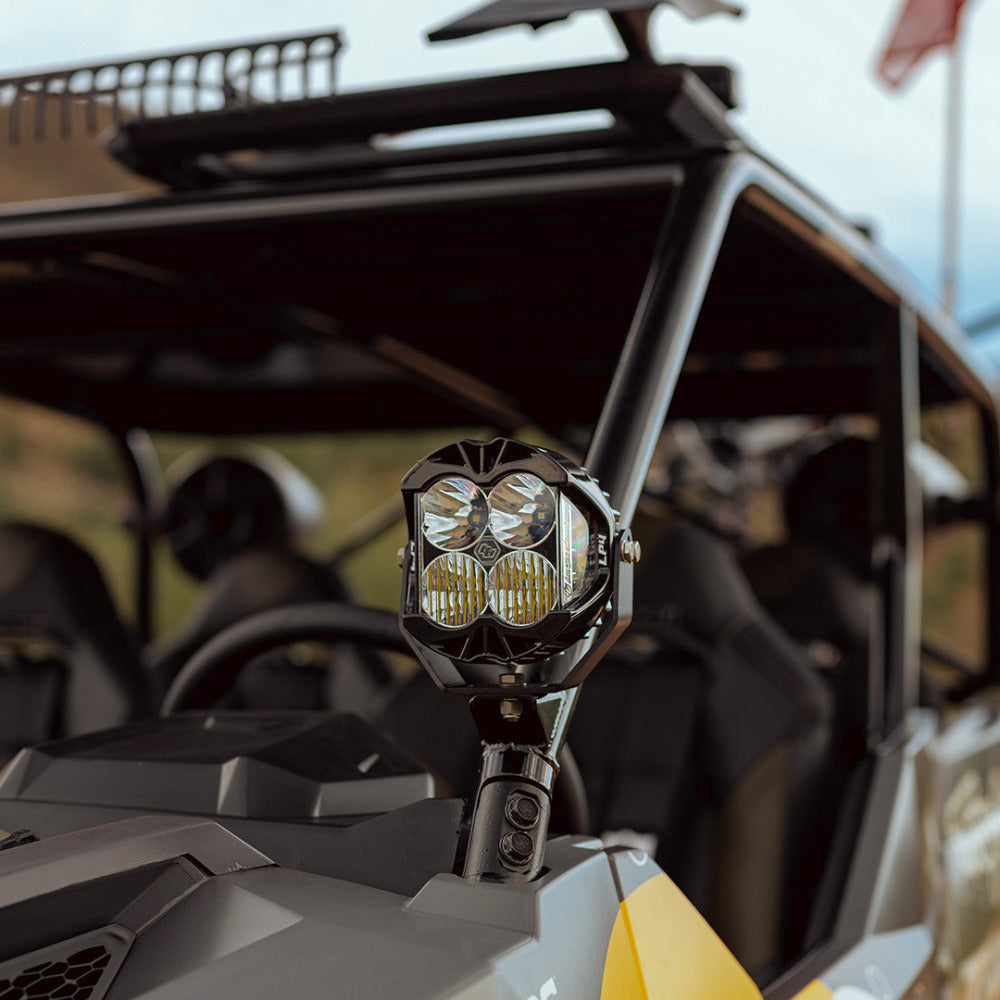

The LP4 series from Baja Designs is the off-road lighting solution for those who are big on adventurous spirit but short on space. At just 5.1” high x 5” wide, they’ll fit on almost any vehicle, including Jeeps, trucks, motorcycles, UTVs, and any other vehicle that needs additional lighting.
The LP4 Pro, the compact powerhouse within the LP series, inherits all the remarkable capabilities of its larger siblings while maintaining a sleek, space-efficient design. With a formidable output of 8,750 lumens and an expansive 200° spread of brilliant LED illumination, the LP4 Pro is the ultimate lighting solution for your adventurous pursuits.
The LP4 Pro effortlessly emits a total of 8,750 lumens, offering a brilliant forward-projecting beam of 7,050 lumens and an additional 1,700 lumens dedicated to peripheral lighting, all thanks to our groundbreaking Integrated Peripheral Technology (IPT).
To ensure that your LP4 Pro consistently performs at its peak, we've incorporated our exclusive Direct Ducted Cooling (DDC) technology. This innovation facilitates the flow of air through the front of the housing, effectively dissipating heat across the rear heat sinks, resulting in vastly improved cooling capacity and performance.
Featuring an amber daytime running light, the LP4 Pro serves as a versatile companion for all your lighting needs. Whether you're navigating off-road trails or enhancing your vehicle's visibility on the road, the LP4 Pro has you covered.
Opt for the LP4 Pro's "Driving/Combo" pattern for maximum trail coverage in a single light. This dynamic pattern combines Driving (42 degrees) and spot (8 degrees) optics, providing a seamlessly blended light output suitable for both close-range tasks and long-distance illumination (Lighting Zone 3).
In Summary
Elevate your adventures with the Baja Designs LP4 Pro LED Auxiliary Light Pod, a compact yet mighty lighting solution that promises outstanding performance, versatility, and unmatched brilliance. Illuminate your path with confidence and experience the road or trail like never before.
Key Features: Baja Designs LP4 Pro LED Auxiliary Light Pod
- Blazing Brightness
- Cool and Efficient
- Versatile Daytime Running Light
- Spot or Driving/Combo Brilliance
- Satisfaction Guarantee (30-day money back guarantee)
- Limited Lifetime Warranty (complete purchase protection)
- uService (replaceable lenses and optics)
- ClearView (all the light, right where you need it)
- MoistureBlock (waterproof, rain proof, submersible)
- CopperDrive (only led driven at 100 percent)
- 5000K Daylight color (less driver fatigue, natural color)
- Made in USA.
Specifications: Baja Designs LP4 Pro LED Auxiliary Light Pod
| Amperage Rating (A) | 5.500 |
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.350 |
| Backlight Wattage (W) | 4.830 |
| Beam Pattern | Spot / Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 8857 |
| Housing Color | Black |
| Housing Material | Hard Anodized Machined Aluminum |
| Lens Color | Clear / Amber |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam/Day-Time Running Backlighting |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | LP4 Pro LED Light Pod |
| Secondary Amperage Rating (A) | 1.000 |
| Secondary Brightness (Lumens) | 1972 |
| Secondary Light Quantity | 4 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 15 |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Wiring Harness Included | No |

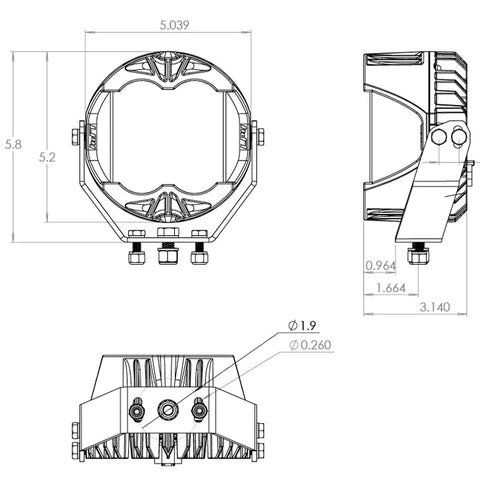

Dimensions
| Length (in.) | 5.1 |
| Height (in.) | 5.1 |
| Depth (in.) | 3.2 |
| Weight (lbs.) | 2.8 |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Document: Baja Designs LP4 Pro LED Auxiliary Light Pod
Baja Designs LP4 Pro LED Auxiliary Light Pod Installation Instructions
