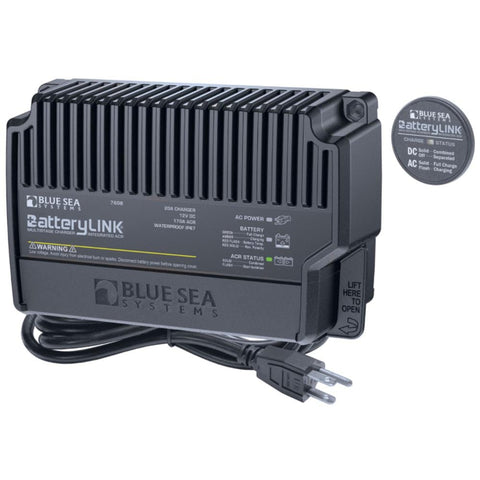

7608 BatteryLink® Charger (North America) - 12V - 20Amp - 2 Bank

Charge at or away from the Dock

• Compact 12V 20A – 2 Bank AC Charger
• 170A Continuous ACR
• Remote Emergency Jump Start
• Battery Temperature Compensation
• Remote Display Included
• IP67 Waterproof

Specifications:

• Total Output Current: 20A
• Nominal Voltage: 12V DC
• Number of Outputs: 1 Negative/2 Positive
• Terminal Stud Torque: 60 in-lb (6.78 Nm)
• Continuous Rating: 65A
• Intermittent Rating: 115A
• Universal AC Input Voltage: 90-265V AC
• AC Input Frequency: 50/60Hz
• Typical Float Voltage: 13.5V DC
• Battery Types: AGM/Flooded/TPPL
• Cable Size to Meet Ratings: 10 AWG Negative Cable/6 AWG Positive cable
• Maximum Battery CCA: 850CCA
• Maximum Cable Size: 1/0 AWG (50mm)
• Operating Current: 10mA/60mA
• Plug Style: North American: NEMA 5-15P
• Recommended Battery Bank Sizes: 60Ah Minimum
• Terminal Stud Size: 1/4"-20
• Warranty: 5 Year
• Combine 30 sec: 13.5V
• Combine 2 Min: 13.0V
• Open 10 sec: 12.35V
• Open 30 sec: 12.75V

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output Voltage: 12v
• Charger Output - Amps: 20a
• Charging Banks: 2
• Charger Input - Voltage: 120/240v
• Box Dimensions: 5"H x 8"W x 13"L WT: 7.95 lbs
• UPC: 632085076085
