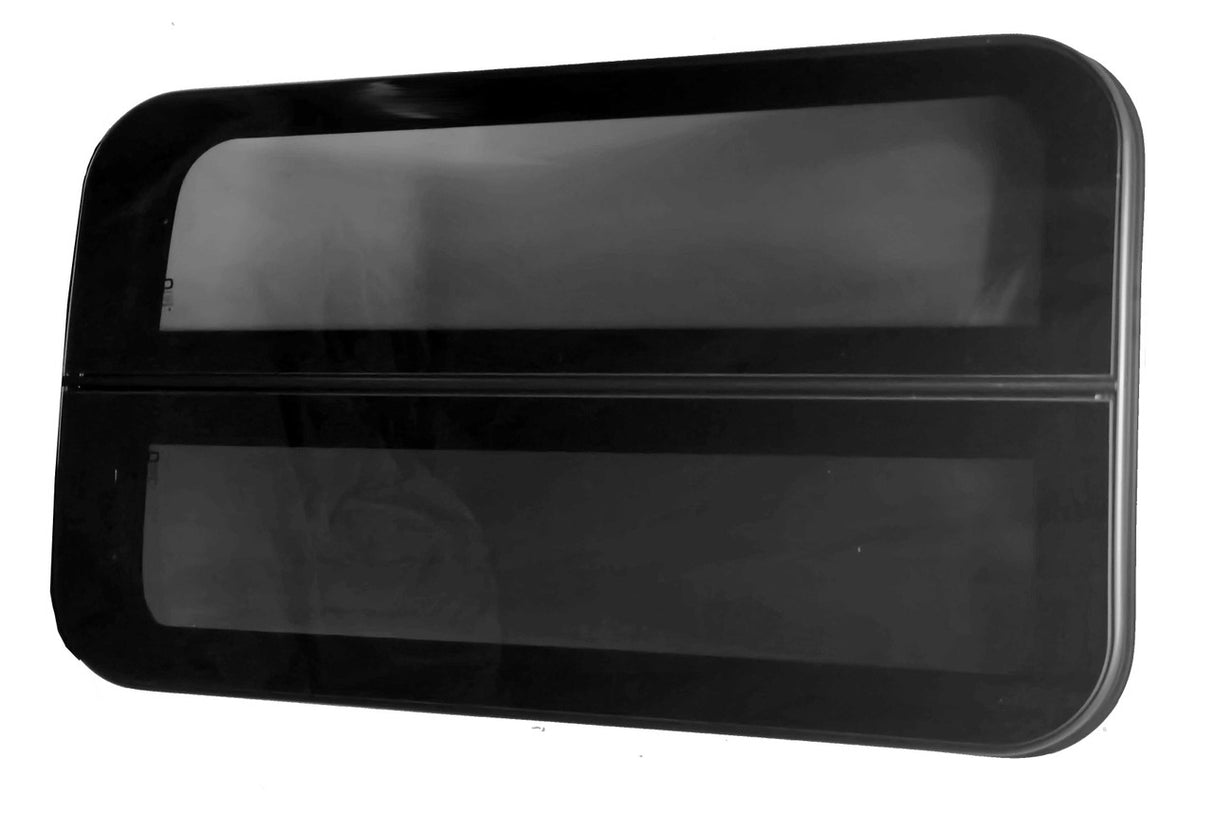

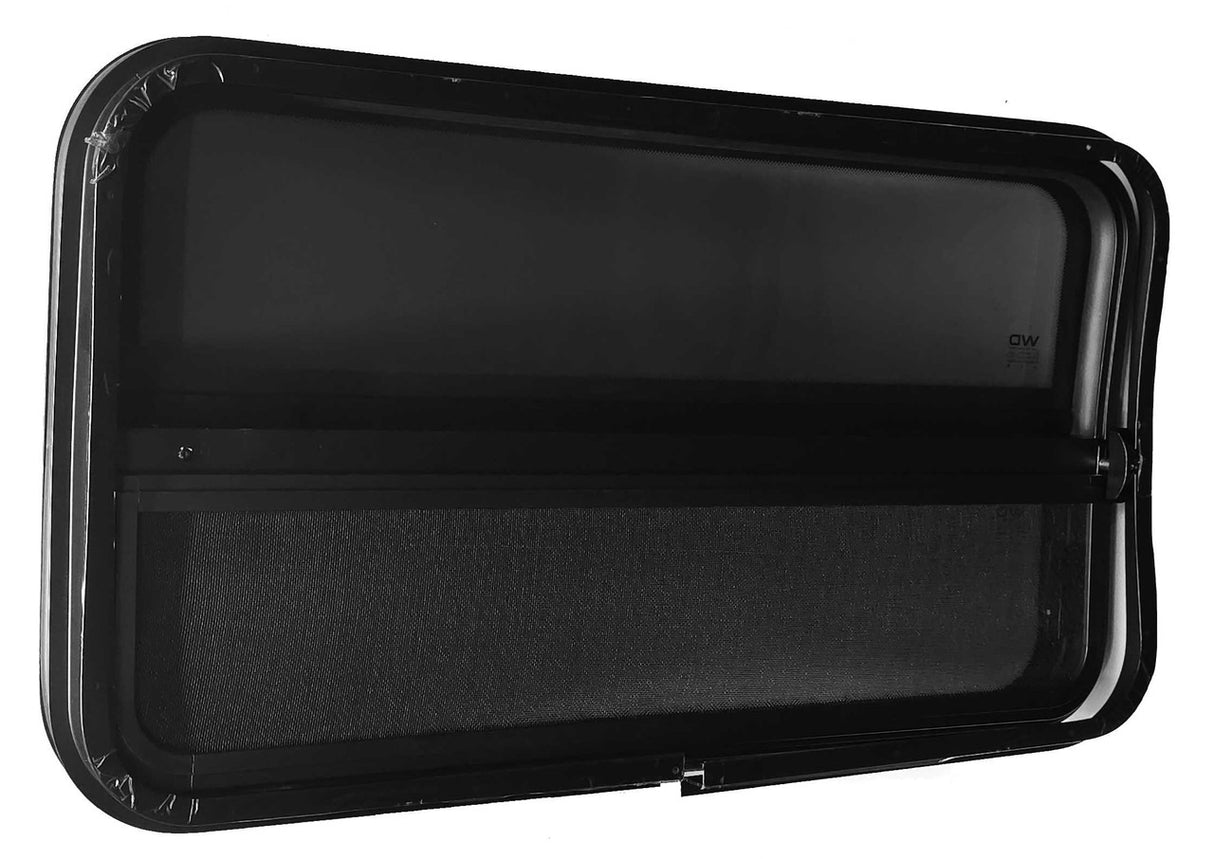

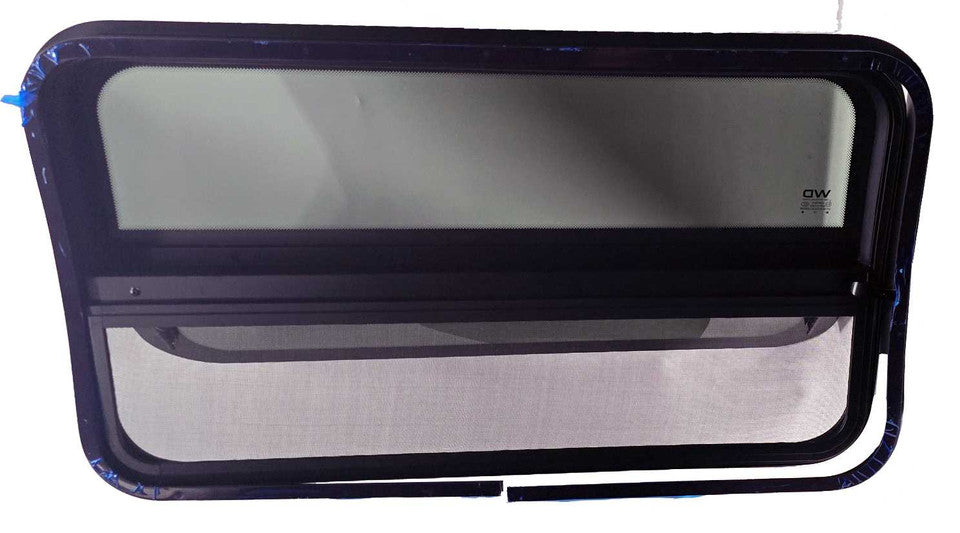

Van Windows Direct Universal Split-Awning Window (O.D - 33.94" x 19.41")(AW3218S)
Couldn't load pickup availability
Earn 1,019 Points when you buy this item.

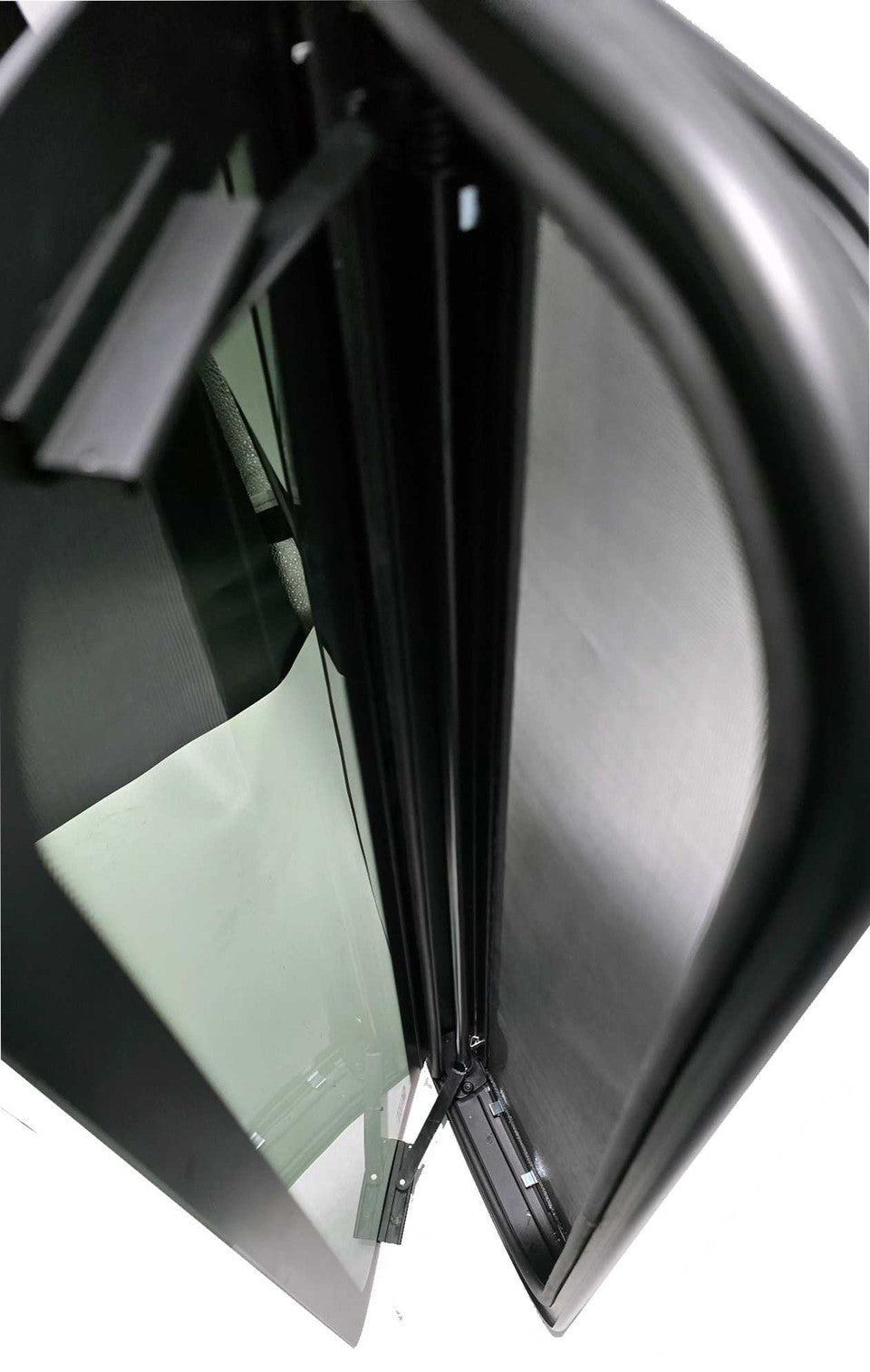

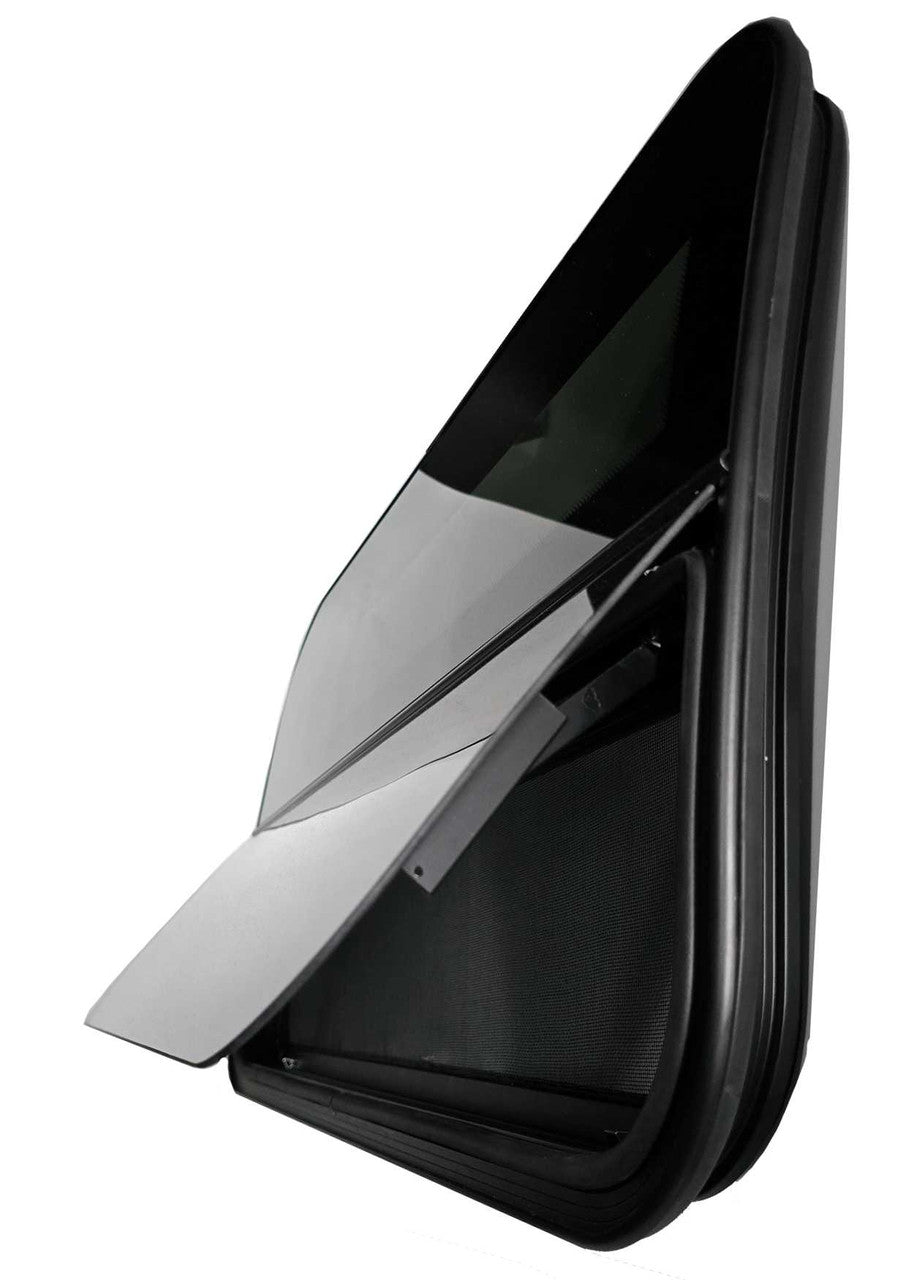

The Van Windows Direct Universal Split-Awning Window (O.D - 33.94" x 19.41")(AW3218S) window has become a popular choice for older van models. It has modern styling, a convenient size, and a large lower glass panel that cranks out like an awning for abundant ventilation and added protection from rainy and snowy conditions.
Note: This van window is very similar to the CR Laurence FW904RS, and is recommended for fitting on older US-made van models with more curved sides. It is not recommended for modern Sprinters, Transit and ProMasters due to its curvature.
Key Features: Van Windows Direct Universal Split-Awning Window (O.D - 33.94" x 19.41")(AW3218S)
- Universal to most 78" radius van walls (recommended for older US-made GM, Chevrolet, Ford vans)
- Color = Solar Privacy Glass
- Contour frame
- UV Rating = 17%
- Installation Type = Clamp Ring
- Mfg Country = China
- Mfg Warranty = 1-Year
- Outside Frame Dimensions: 33.94" X 19.41" (862 x 493 mm)
- Cut-Out Dimensions: 32.68" X 17.91" (830 x 455 mm)
- Awning opens approximately 6.89".
What’s needed to install a clamp-in window?
- Bunk window
- Gasket (included with window)
- Clamp ring (included with window)
- Screws (included with window)
- Bunk window template (not always included)
- Drill & metal drill bits(1/8” max)
- Philips screw driver (hand-tighten all screws)
- Step bit (3/8”-1/2” at least)
- Jigsaw with fine metal blade
- Foam or bristle paint brush
- Auto paint/primer
- Plastic/paper drop-cloths
- Blue painter’s tape
- Safety:
- Gloves
- Eye protection
- Hearing protection
- Face mask
- Long-sleeved shirt
Check out our VAN WINDOWS DIRECT AW3310 CLAMP-IN BUNK WINDOW INSTALL GUIDE for a guide on installing clamp-in bunk windows.
Specifications: Van Windows Direct Universal Split-Awning Window (O.D - 33.94" x 19.41")(AW3218S)
| Frame Style/Radius | Contour/78" |
| Install type | Clamp-in, 1/8" |
| Ventilation Style | Awning(bottom glass only) |
| Awning opening | 6.89" (175 mm) |

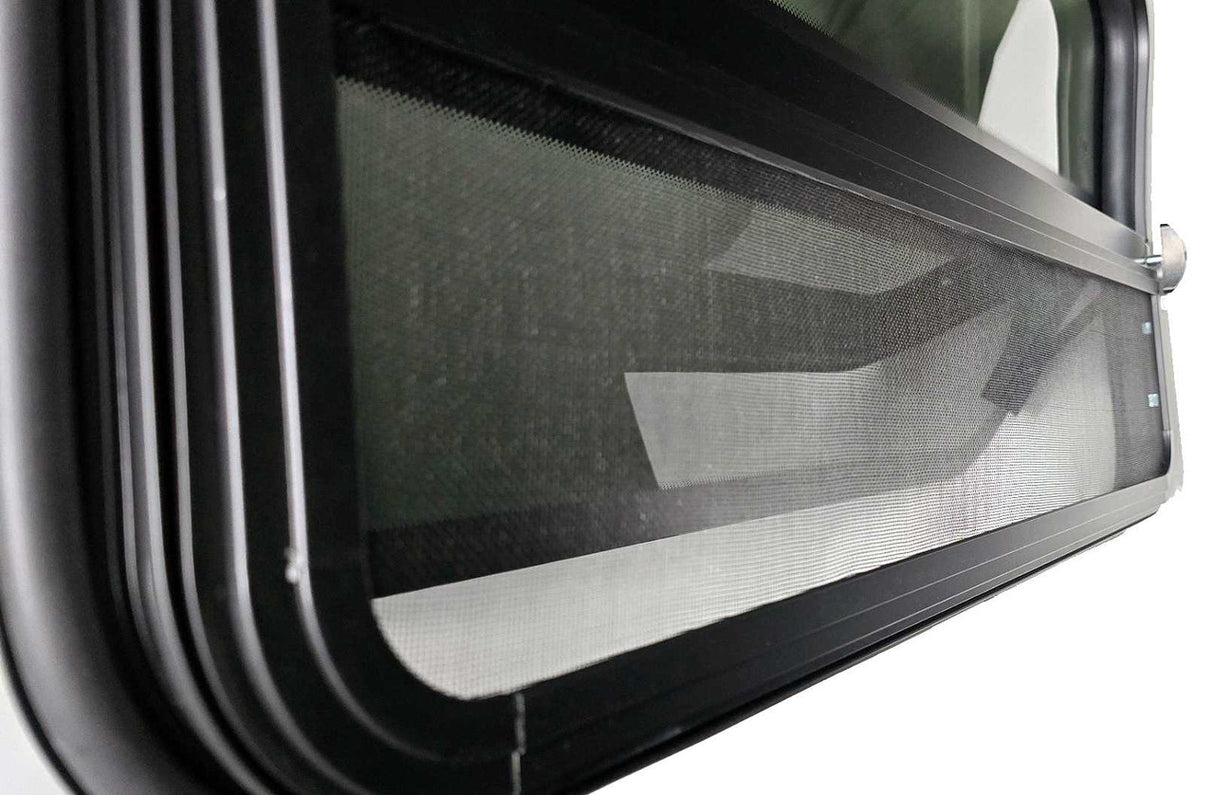

| Screen | 5.83" x 30" (148mm x 762mm) |
|
Cut-Out Dimensions |
32.68" X 17.91" (830 x 455 mm) |
| Outside Frame Dimensions | 33.94" X 19.41" (862 x 493 mm) |
