EcoFlow's new 5kVA Power Kit offers a massive 5000 VA power capacity for any RV off-grid solar system and up to 45 kWH of battery storage to power all your appliances and devices. EcoFlow's advanced 5kVA Power Kit caters specifically to all RV, motorhome, camper van, and overlanding vehicle needs with the ability to select multiple configurations.

Available now for PRE-ORDER. Orders are expected to ship late December.

EcoFlow PK2 MPPT, Inverter, Solar Off grid system

5 kVA Power Kit Offers More Power and More Capability

The 5kVA Power Kit is a complete off grid solar kit, designed to take on multiple high-power appliances at the same time. Run 2x 1350 BTU rooftop A/C units and plug directly into 2x Power Hub Battery ports. Add-on extra battery capacity by connecting the EcoFlow Power Dock using Battery cables. Add up to 45 kWH of power.

Track and monitor your off grid power and on-board sensor usage using the 10" PowerInsight touchscreen console. A completely integrated system for your whole RV, camper van, travel trailer, or camper with the Power Link accessory.

The innovative, plug and play off grid electrical solution for big power consumption is available now of pre-order.

Power Kit Inverter, Charge Controller, MPPT, Victron

Why is the NEW PK2 called 5kVA Power Kit?

EcoFlow's shifted their classic Power Kit 5-15 kWH products to define the new Power Hub output capacity over the battery power capacity. The new Power Hub offers a massive 5 kVA output while the original Power Hub offers an impressive 3.6 kVA.

The additional power output allows for high-powered appliances and devices to be connect and run continually.

Add up to 9x 5kWH or 2 kWH batteries with the new 5 kVA Power Kit and enjoy the boosted 5000 VA power supply for all your power-hungry appliances.

What are the Battery Sizes for the New 5kVA Power Kit?

Battery sizes will remain unchanged.

Both 5kWH and 2kWH batteries are available with 3.6 kVA and 5 kVA Power Hubs. Build the power system that works best for your RV and camper van by upgrading to the new 5kVA Power Hub and add up to 9 batteries using the Power Dock.

Can I connect my existing 5kWH batteries to the new 5kVA Power Kit?

Yes! Both the batteries and battery cables are compatible with 3.6 kVA and 5 kVA Power Hubs.

5 kVA Power Kit Components

The most power efficient, plug and play off-grid power system is now even more powerful and capable. Allowing you the ability to balance a max 5000 kVA output and optional 120V or 240V power. The 5kVA Power Kit is the complete off-grid power system with solar, alternator, and shore power charging in one Hub and up to 45 kWH of expandable battery power.

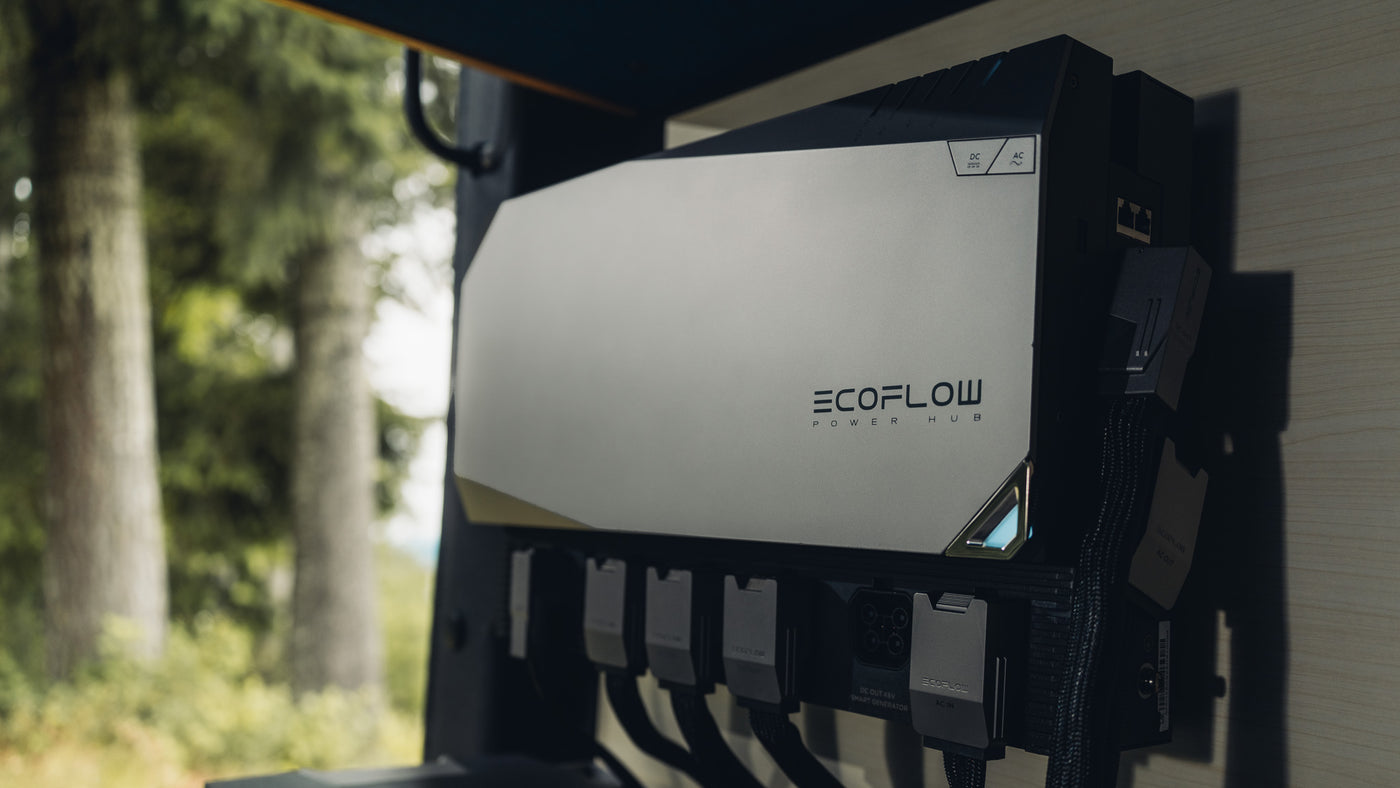

5 kVA Power Hub

All-in-one 5 kVA Power Hub is your high-power off grid solution, including 5 main components in-one hub: MPPT, Inverter, DC to DC charging, distribution, and wiring.

Experience fast charging and the ability to increase from 120V to 240V output when using bypass mode directly connected to shore power.

AC Output (Discharge only):

120V - 4000W, 5000VA, 60Hz (Surge 10kVA, 100ms)

AC Output (Bypass Mode):

Low Voltage: 100-120V ~ 50A Max, 50/60Hz
High Voltage: 220-240V ~ 50A Max, 50/60Hz

DC Main Output

13.6V - 100A, 1300W Max
26.4V - 60A, 1600W Max

X-Fusion (Power Assist)

50A, 5000VA Max

AC Main Input Voltage/frequency

100-120V, 50Hz/60Hz

Solar Charging Input

Port 1: 13-60V 100A, 4000W max
Port 2/3: 13-60V 30A, 1600W max

Alternator Charging Input

13V-60V, 60A/30A/30A, up to 4800W total

30/50A AC/DC SMART DISTRIBUTION PANEL

Ultimate power distribution for 50A and 30A shore power charging. Offers 16 DC and 12 AC circuits all controlled from EcoFlow App or PowerInsight screen. The all-new 30/50 Amp Smart Distribution Panel reimagines traditional electrical panels with upgraded PowerInsight connection and monitoring. Now, you can opt to install breakers, fuses, and wires as traditionally done with RV electrical panels to increase power control, breaker voltage needs, and replace parts quickly using store-bought components.

Charge faster and more efficiently with 50A AC input from shore power. View and operate all circuits through the EcoFlow Power Insight and EcoFlow App on your device

30/50A AC/DC SMART DISTRIBUTION PANEL

AC Input	50A Max. 120V/240V, 60Hz
AC Output	Max 30A for each branch circuit
AC Circuits	Max 12 branch circuits
Maximum Input Short-Circuit Current	10kA
DC Input	Max 100A, 13/26V
DC Output	Max 30A for F1-F13 Circuits Max 50A for F14-F16
Number of Circuits	16 controllable circuits(F1-F16)

2 KWH/5 KWH LFP BATTERY

Smart and compact 48V LFP batteries. Available in 2 kWH and 5 kWh sizes. Combinable using new 5 kVA Power Kit.

Built-in auto heating to use in as low as -4°F
Stackable
Expandable up to 15 kWh (Power Hub only) and 45kWh (with 3x Power Docks)
Hot-swap enabled for safety protection
Advanced BMS for battery protection and smart control
Long-lasting, 3500+ 100%/charging cycles

Power Dock

Easily connect up to 3 battery ports, and add-on extra customization with battery switches to maintain batteries more efficiently when not in use. Each Power Dock allows up to 3x additional batteries.

Connect 3x Power Docks to utilize 9x 5kWh LFP Batteries for up to 45kWh of stored energy.

Power Link

Power Link connects your RV sensors directly to your PowerInsight and Power Hub to monitor all systems in your RV, motorhome, camper van system including: water tank, propane tank, temperature, and more.

PowerInsight

10" touchscreen panel connects to Power Link and controls complete power operation, circuit connections, and sensor levels. Track your power and vital supply usage easily, all from one place.

How to Connect 9x EcoFlow Batteries to 5 kVA Power Hub

The innovative Power Dock accessory allows you to connect 3x additional battery cables (sold separately) to your Power Hub. To use, simply connect your battery cables to the Power Dock and connect your Power Dock to 1 of 3 Battery ports using an additional battery cable.

You'll receive 1x battery cable per battery and will need to purchase 1x additional battery cable per Power Dock accessory. Up to 3x Power Docks can be connected to the 5kVA Power Hub to allow up to 45 kWH stored power for the ultimate off-grid solar kit. See the graphics below for details.

Power Dock EcoFlow 5 to 45 kWH Off grid solar Power kits

How to Connect and Monitor RV Sensors with 5 kVA Power Hub

The all-new off grid power system allows for direct monitoring of all your on-board systems using the innovative Power Link. You can connect up to 2x Power Links with 10 connections on each. Easily monitor your systems via the EcoFlow PowerInsight Touchscreen or the EcoFlow App.

Connect various sensor types by labeled sections. (See below).

Two EF BUS ports connect with EcoFlow Power Hub series or EcoFlow Smart Distribution Panel series
2 One CAN port, RV-C/NMEA 2000 in/out support
3 Connects with voltage-level sensors
4 Connects with resistive-level sensors or temperature sensors
5 Connects with one sensor of digital-input type
6 Connects with auto start/stop of engines or generators

Summary

Manual-built off-grid electrical systems including individual Victron or Renogy components are great for experienced electrical RV builders, but what about the rest of us?

EcoFlow's easy to use and install plug-and-play off grid power systems make off grid power kits accessible to all experience levels. Get the new 5 kVA Power Kit for more off grid power supply for all your high-powered appliances like fridges, space heaters, coffee makers, and rooftop air conditioners.
